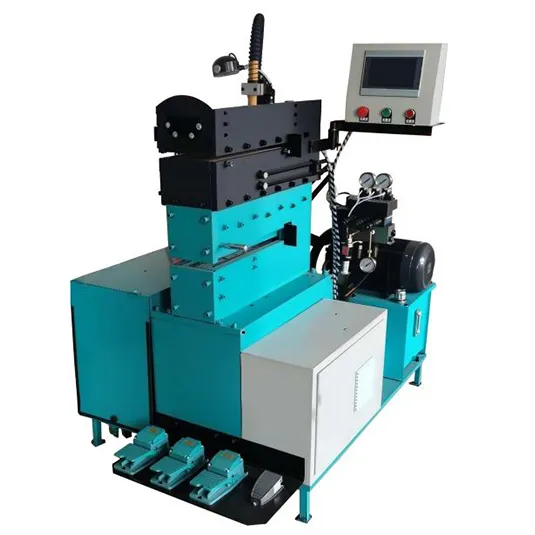

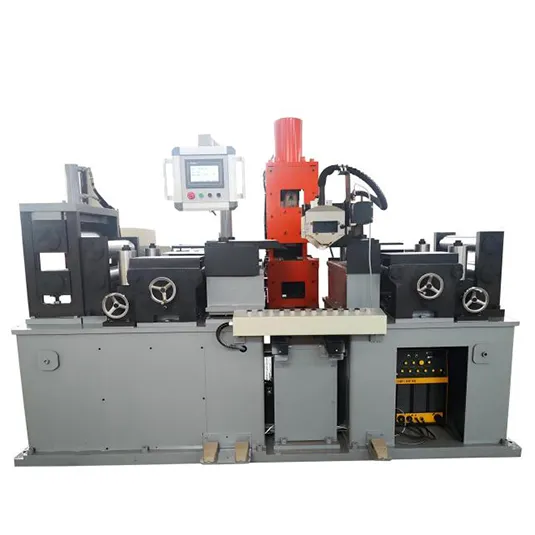

Strip Head Shearer and Butt Welder

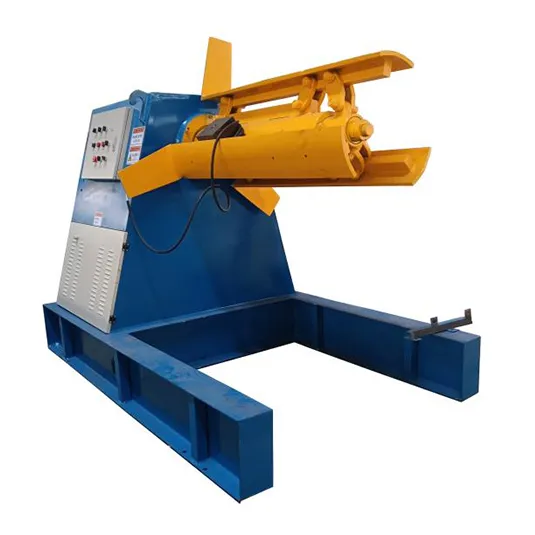

Decoiler

Semi-automatic

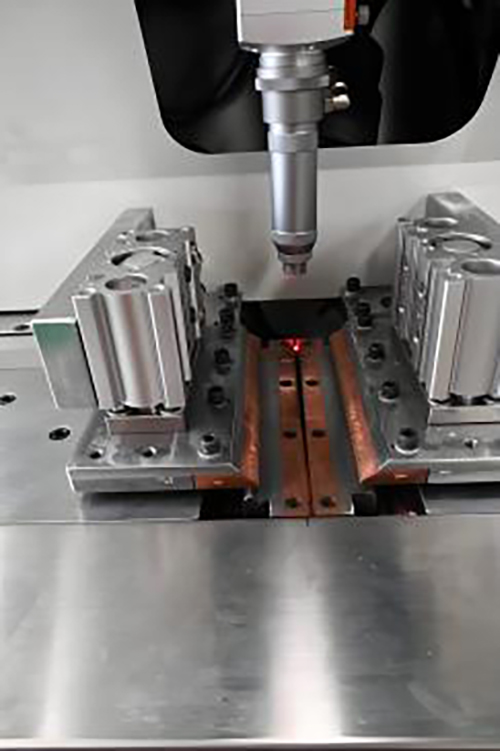

The fully automatic shearing and welding machine can autonomously shear and use precision sensors to monitor the edge of the strip in real time. Through PLC control, the actuator automatically compensates for any deviation from the centerline, ensuring extremely high overlap between the strip head and tail. This effectively solves the welding misalignment problem that easily occurs during manual operation.

The high-precision welding produced by automatic alignment results in smooth and narrow welds, with weld strength typically exceeding 90% of the base material. This design allows the weld to pass smoothly through subsequent forming rollers or stamping dies without the need for secondary grinding, protecting the die and reducing the risk of strip breakage.

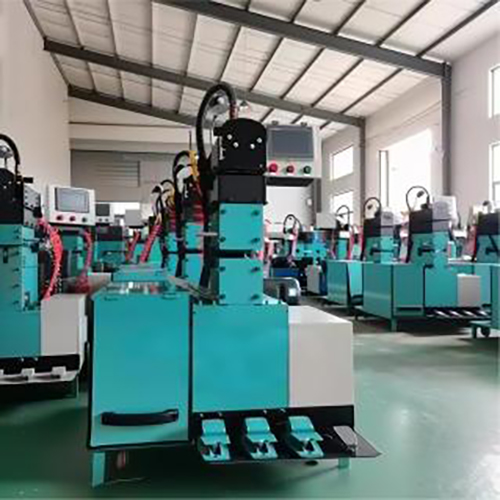

Small steel strip welding machines can adapt to various production needs, are suitable for flexible environments, and have ample stock in the factory for quick delivery and guaranteed quality.

Effective shearing & welding sizes

Width:40-240mm

Thickness: 1.0-4mm

Width:650mm

Thickness: 6.3mm

Welding speed

0-600mm/min(Adjustable)

0-800mm/min(Adjustable)

Running accuracy

0.1mm

0.1mm

Cutting and clamping method

Hydraulic

Hydraulic

Welding method

Argon-arc welding

Argon-arc welding

Cutting speed

0-15mm/s

0-15mm/s

Weight（kg）

800 kgs

2000 kgs

Machine dimension

1260x1000x1400mm

3000x1000x1400mm

PLC

7 inches

7 inches

Cutting pressure

0.6-15Mpa

0.6-15Mpa
