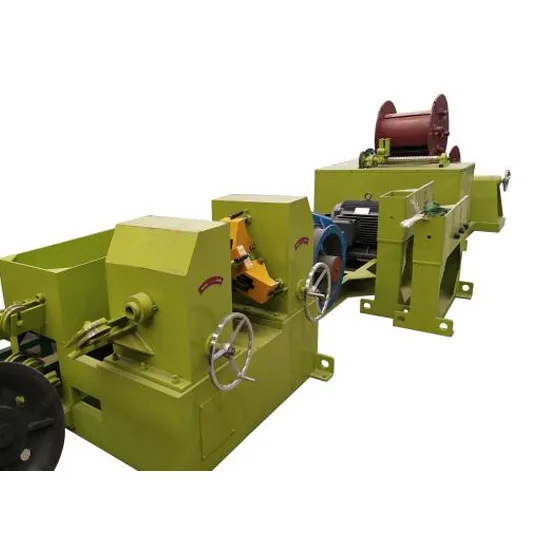

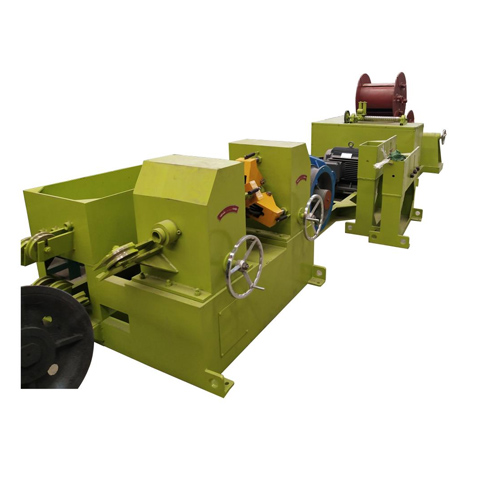

Rebar threading machine | |
| |

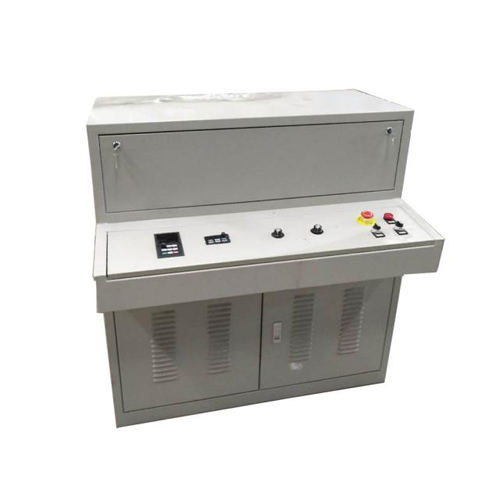

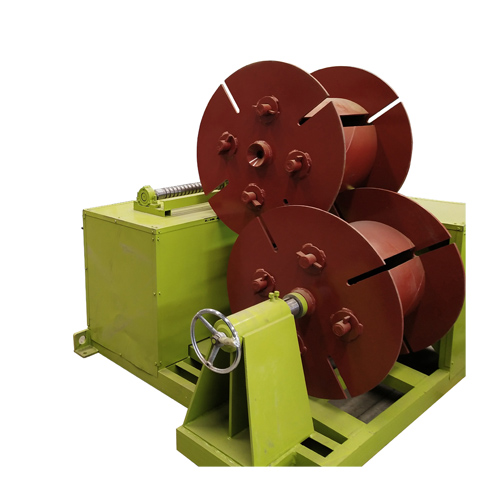

Control cabinet | Winding machine |
|
|
| Picture | Details |

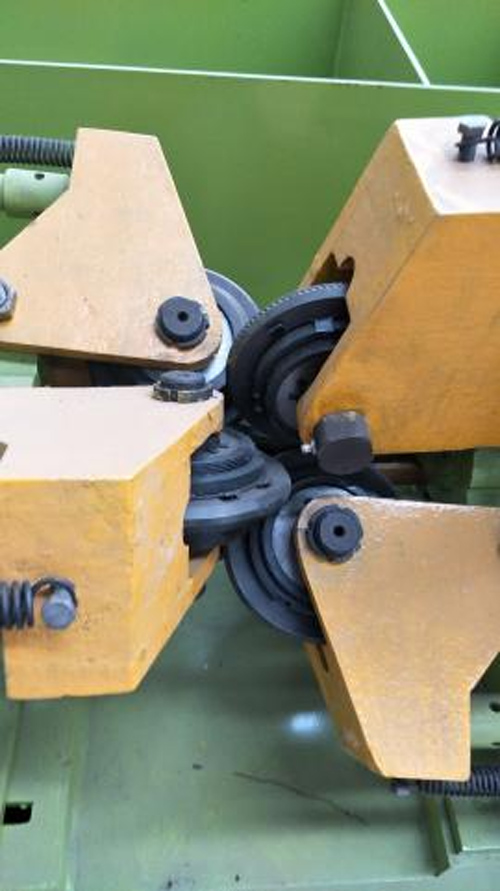

![]() | The three-sided thread rolling die is made of alloy tool steel. The three-sided thread rolling die has a guide zone composed of three unthreaded structures, which can prevent stress concentration and damage, guide the workpiece smoothly into the thread forming area, and gradually apply rolling pressure to avoid instantaneous impact or damage to the workpiece. |

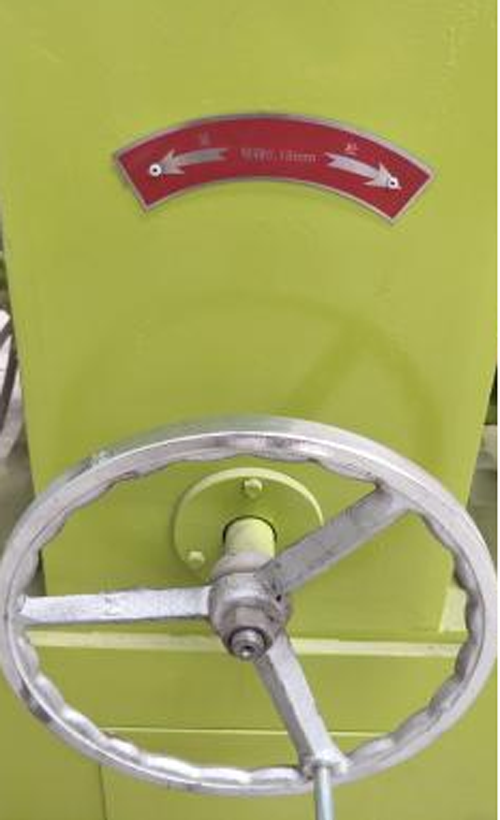

![]() | The handwheel and position indicator design allows for precise adjustment of the mold position. This design is typically used in scenarios where manual intervention is required for fine-tuning or setting, making the operation intuitive and easy to control. |

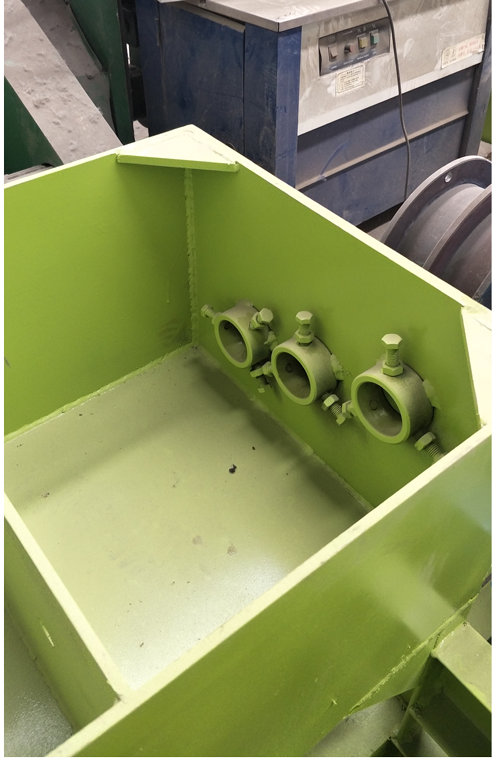

![]() | The overall frame is welded with 90mm angle steel, and the columns are welded with 80mm square tubes to make them detachable. The panel thickness is 2.0mm. Before thread rolling, it is equipped with a straightening and reducing device, and the wire drawing and thread rolling are completed on one production line to ensure the continuity and efficiency of production. |
Power | 66KW(frequency conversion) |
Input wire diameter | 8mm-14mm |
Finished product wire diameter | 6mm-12mm |
Outlet speed | 100m/minute(12mm 5tons/hour,10mm 4tons/hour,8mm 2tons/hour,6mm 1.2tons/hour) |
Control Method | frequency conversion |
Wire collection machine weight | 1T |
Machine weight | About 6T |
Workshop area | 16-20m2 |
