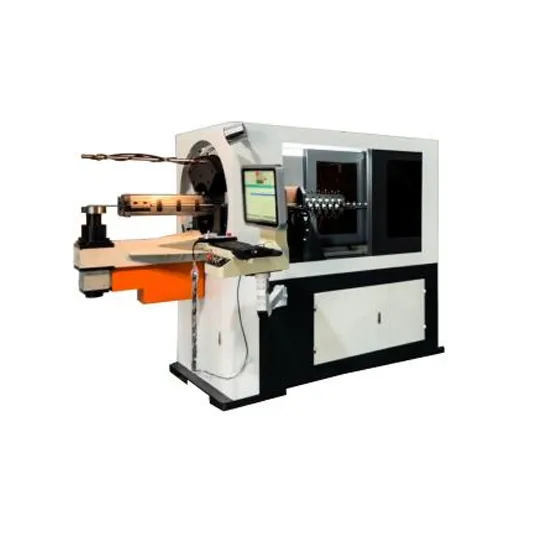

3D Wire Forming Machine

Name: 3D Wire Forming Machine
Brand: HEBEI SHUNMAO TECHNOLOGY CO., LTD

3D wire forming machine is a very widely used and flexible wire forming machine, which can produce wires of various specifications and shapes, whether regular or irregular; the entire process is controlled by PLC, which is accurate and efficient.

Request A Quote

Details of 3D Wire Forming Machine

As experienced wire making machine manufacturers, we provide customized wire forming solutions for different wire diameters, product shapes, and production requirements. The equipment is designed to deliver high forming accuracy, stable operation, and efficient automated production for a wide range of wire products.

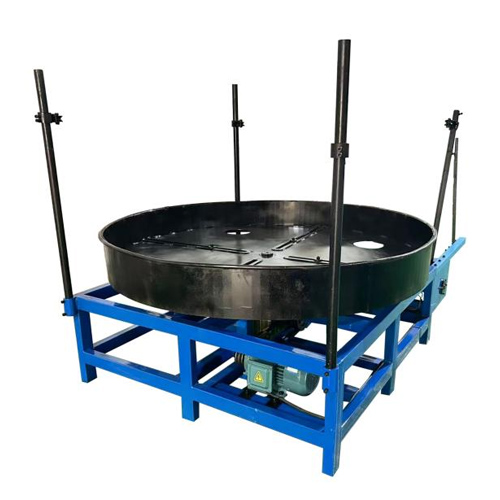

Decoiler

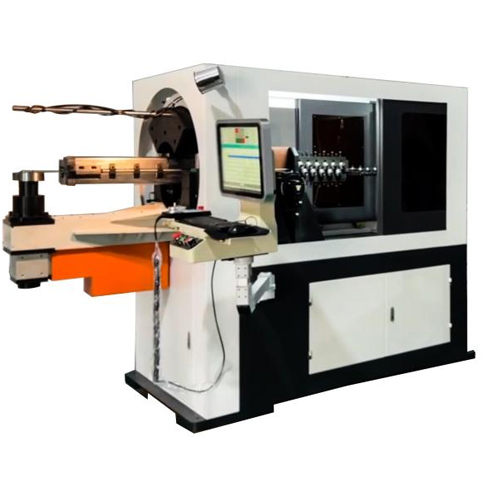

Wire forming machine

Decoiler

Wire forming machine


Details

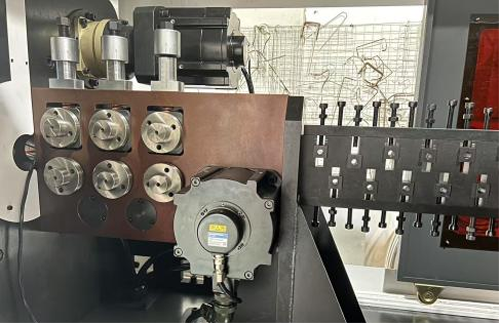

The machine product design has very strict precision requirements and is equipped with a precision detection device. If there are unqualified products, production will be stopped immediately to ensure the customer's production efficiency and product quality.

Details of 3D Wire Forming Machine

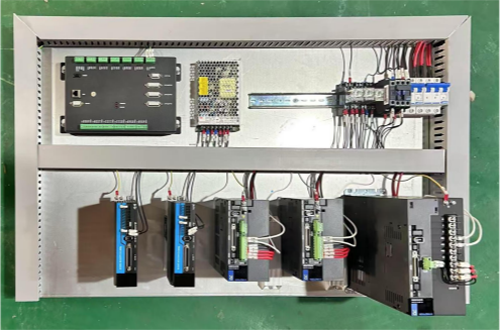

The machine circuit adopts an integrated approach, which simplifies the equipment installation steps and avoids various problems caused by many circuit installation errors. At the same time, when a circuit malfunctions, it can be detected, adjusted and replaced in time to improve production efficiency.

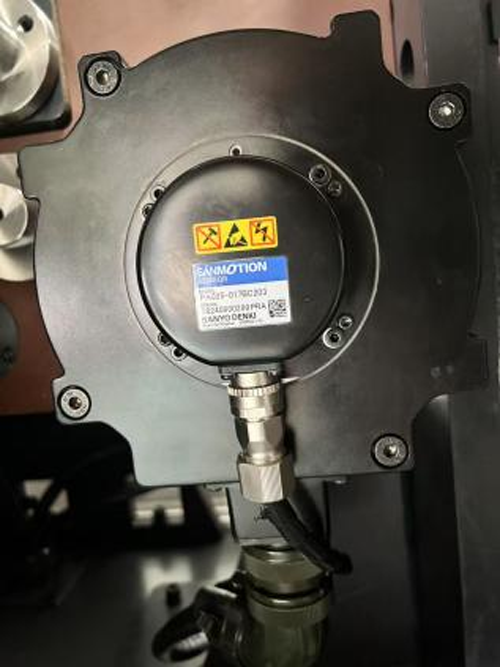

The whole machine uses high-quality accessories to improve the service life and performance of the machine, run smoothly, and have low energy consumption, which greatly improves the quality and reliability of the products produced.

Parameter of 3D Wire Forming Machine

Model No.

STM-3D-5700

STM-3D-51200

No. of Axis

5-Axis

Applicable Wire Diameter

Hard material

Soft material

Hard material

Soft material

Ø3.0-6.0mm

Ø3.0-8.0mm

Ø5.0-8.0mm

Ø5.0-12.0mm

No. of Wire Feed Wheel

3 set wheels

4 set wheels

Power of Wire Feeding Motor

4.5kW

15.0kW

Power of Rotating Arm Motor

2.7kW

3.5kW

Power of Wire Cutting Motor

1.0kW

Power of Wire I/O Control Motor

1.0kW

Power of Angle Folding Motor

2.0kW

Weight of Machine

2800kg

3800kg

Input Power

380V/50Hz/3PH

Size of Machine(L*W*H)

2580*1270*1760mm
