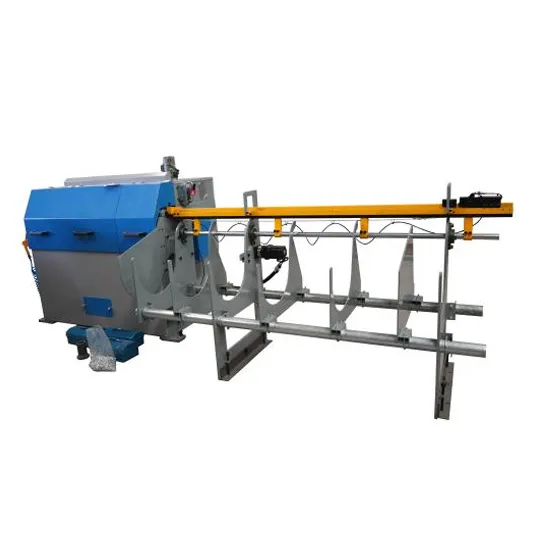

Shunmao Automatic Wire Straightening and Cutting Machine for Industrial Wire Processing
A wire straightening and cutting machine converts coiled metal wire into straight, fixed-length pieces through pay-off, straightening, feeding, CNC length control and automatic cutting. ShunMao's available configurations cover 3–20 mm wire diameter, with selected models reaching a maximum speed of 130 m/min and stated straightness/length accuracy of ±2 mm.
Our wire straightening and cutting machine for sale is designed to feed coiled wire, straighten it and automatically cut it into preset lengths. It can operate as an independent straightening and fixed-length cutting unit, or work with wire mesh production equipment where straight, consistent wire pieces are required.
Machine selection should be based on the required wire diameter, material, cut length, tolerance, production capacity and downstream process. ShunMao can recommend a suitable wire straightening machine configuration according to these actual production requirements rather than speed alone.
Details of Wire Straightening & Cutting Machine
As experienced wire making machine manufacturers, we provide customized wire straightening and cutting solutions for different wire diameters, production capacities, and processing requirements. Our machines are designed to achieve high straightening accuracy, stable operation, and efficient automatic cutting performance.

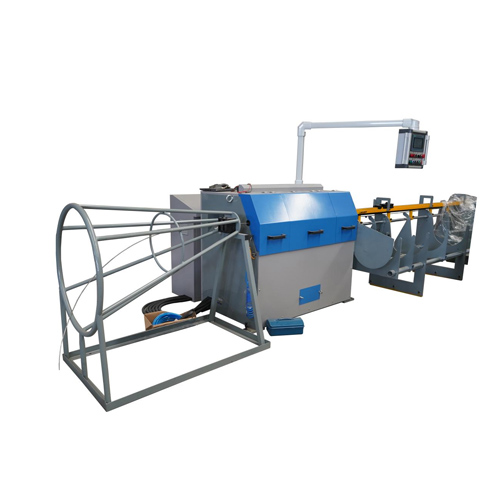

Straightening and Cutting |
|

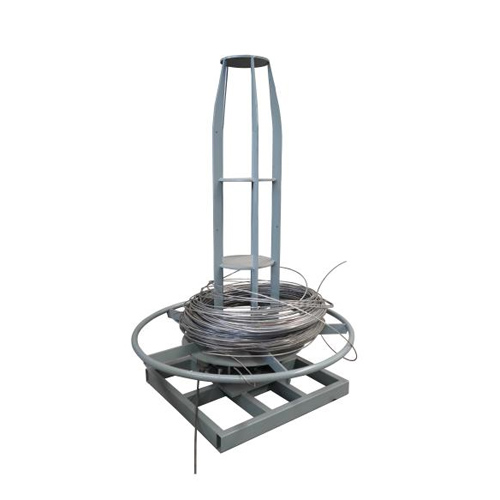

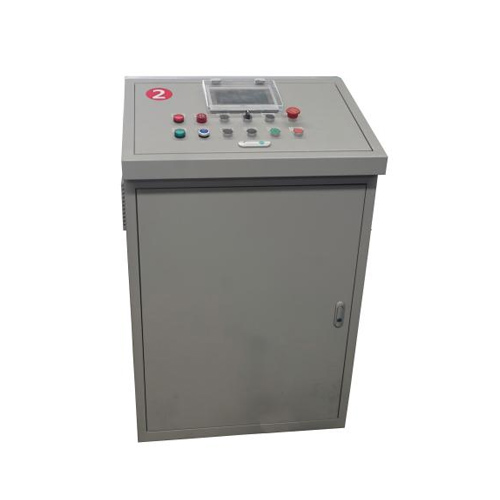

Paying Off | Electric Control Cabinet |
|
|
| Picture | Details |

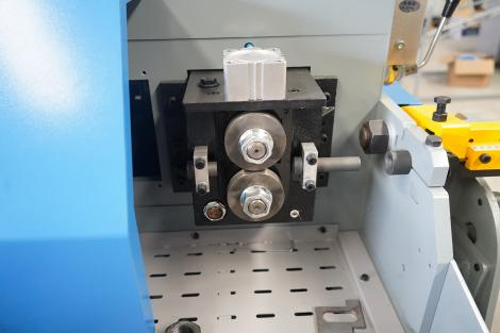

 | Straightening Components:This machine's straightening design includes multiple straightening blocks and cylinders, enabling efficient straightening of various wire sizes,including twisted steel, rebar, and more.As a trusted wire straightening and cutting machine factory, we focus on delivering stable performance and long service life. |

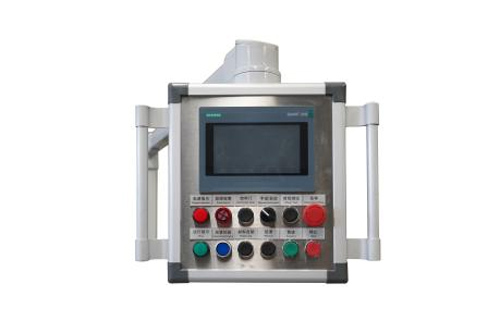

 | Operation Panel: The bilingual Chinese and English control panel features convenient and fast CNC operation.The control system can be customized to meet customer requirements and offers reliable quality. This makes it an ideal choice for customers seeking a wire straightening and cutting machine in China. |

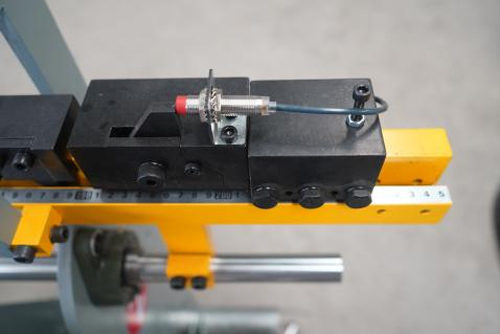

 | The CNC system cuts to length: Automatically counting the number of rebars cut and straightening, and automatically stops the machine when the required number of rebars is reached. It also has automatic stop functions in the event of a malfunction or when the material runs out. We can provide a complete production demonstration for customers evaluating a wire cutting machine for sale. |
Before selecting a machine model, customers often compare the wire straightening and cutting machine price, and wire straightening machine price according to production capacity, wire diameter range, and automation level. In addition to equipment pricing, buyers should also evaluate the overall wire straightening and cutting machine cost and straightening machine cost, including maintenance, labor, energy consumption, and spare parts expenses. For overseas customers, ShunMao is a reliable wire straightening and cutting machine China manufacturer with extensive export experience and professional technical support.
Features of Shunmao Wire Straightening and Cutting Machine
The CNC system can count processed pieces, stop when the preset quantity is reached, and support automatic stopping when material runs out or a malfunction occurs.
Machine options are available for wire diameter ranges from 3–6 mm through 12–20 mm, allowing buyers to match the machine to their actual product range.
The bilingual Chinese-English control panel supports convenient CNC operation, and control-system configuration can be customized according to customer requirements.
Parameter of Wire Straightening&Cutting Machine
Diameter(mm) | 3-6 | 4-8 | 5-12 | 8-14
(6-14) | 10-16
(8-16) | 12-20 |
|
Speed(m/min) | Max 120 | Max 120 | Max 130 | Max 130 | Max 130 | Max 60 |
|
Straightness accuracy | ±2mm |
Length accuracy | ±2mm |
Power | 4+1.5+2.6+2kw | 11+3kw | 30+7.5kw | 37+7.5kw | 45+7.5kw | 30+18kw |
As one of the experienced wire straightening and cutting machine manufacturers, we offer different machine configurations to meet various wire diameter and production requirements.
Applications for Straightening and Fixed-Length Wire Cutting
This wire making machine is suitable for industrial processes that require coiled wire to be converted into straight, repeatable, fixed-length pieces. For steel wire processing, it can be configured as a steel wire straightening machine with automatic cut-to-length control. It can be used independently or integrated with downstream wire and mesh processing equipment, depending on the production layout.
Wire Mesh Production
Prepare straight cross wires or fixed-length wire pieces for mesh processing and welding operations.
Construction Wire Processing
Process steel wire or reinforcing-related wire materials where consistent straightness and cut length are required.
Steel Wire Processing
Convert coiled wire into straight cut pieces for subsequent forming, welding, packing or fabrication.
Independent Cut-to-Length Work
Use the machine as a stand-alone solution for producing straight wire in repeatable preset lengths.
For construction-related mesh projects, see ShunMao's Construction Mesh Machinery Solutions. For downstream equipment, browse the Wire Mesh Machine category.
Why Source from ShunMao, a Wire Straightening and Cutting Machine Manufacturer in China?
ShunMao has nearly 30 years of experience in wire processing and wire mesh machinery. With an experienced design and production team, we provide equipment solutions based on different wire diameters, materials, processing requirements and production capacities. Our machines have been supplied to customers in multiple overseas markets, giving us practical experience in international equipment projects and export service.
Quality control is integrated into the equipment production process. Before shipment, machines are tested and debugged to check operating performance and confirm the agreed configuration. ShunMao also provides relevant technical documents, machine videos and available certification or test information to support customers during supplier evaluation and equipment selection.
Support Before Ordering
Before an order is confirmed, our team can help evaluate your wire diameter, material, required cutting length, production capacity, voltage and downstream process. Based on these requirements, we recommend a suitable machine configuration and provide quotation and technical information for comparison.
Production and Pre-Shipment Testing
During machine production, ShunMao follows the manufacturing progress and communicates with customers about configuration and delivery arrangements. Equipment is tested and debugged before shipment so that key operating functions can be checked before the machine leaves the factory.
Installation and After-Sales Support
After delivery, we provide installation and operation guidance and continue to support customers with machine use, technical questions and spare-parts requirements. For overseas projects, our team also follows shipment progress and helps customers prepare for equipment installation and commissioning.
