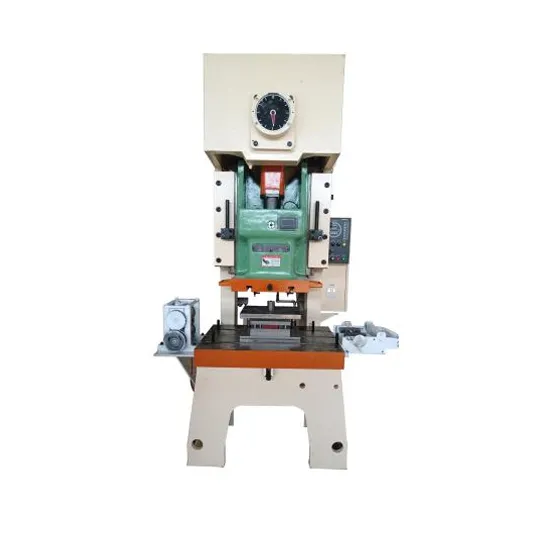

Concertina Blade Wire Machine

Our barbed wire machine can achieve precise stamping with small errors, thereby reducing material waste. It is also highly efficient, with controllable working speed, and can accept various types of mold customization, making it suitable for a wide range of applications.


Request A Quote
Concertina Blade Wire Machine
Concertina Blade Wire Machine

Details of Concertina Blade Wire Machine

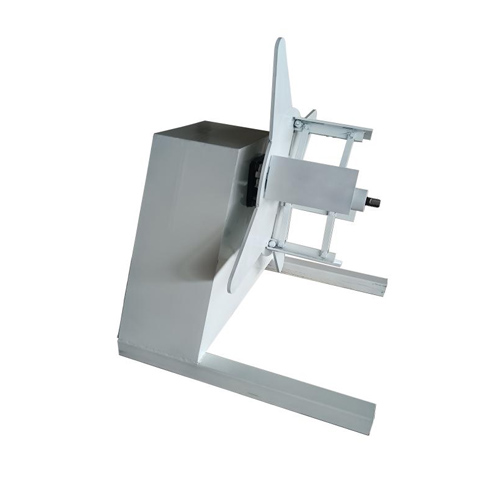

Decoiler

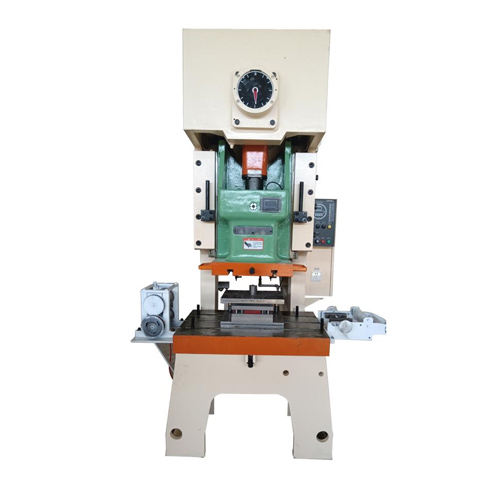

Main machine

Decoiler

Main machine

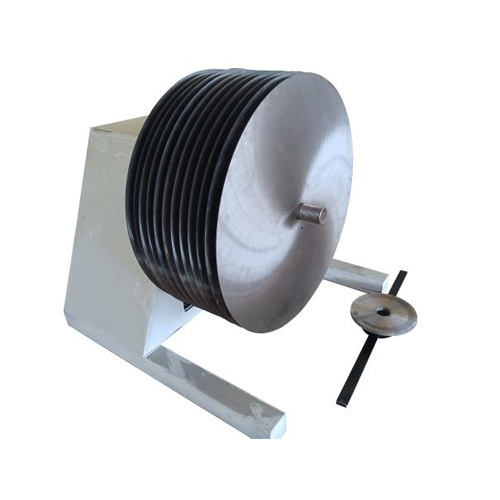

Winding machine

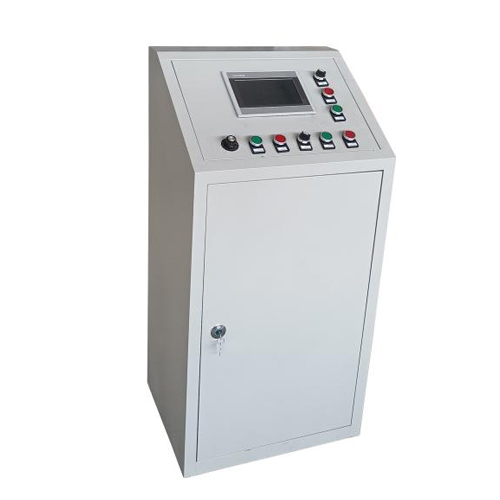

Control cabinet

Winding machine

Control cabinet



PictureDetails

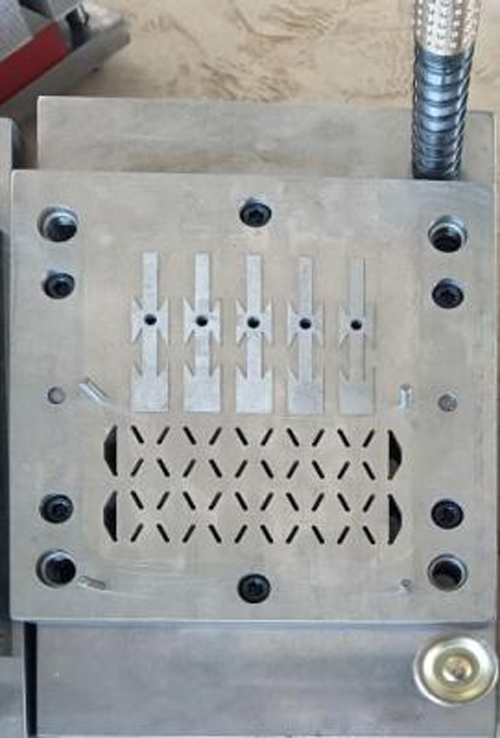

Details of Concertina Blade Wire MachineOur molds are made of alloy steel or tungsten steel for different materials, ensuring reliable quality, high punching efficiency, minimal material waste, and durability.

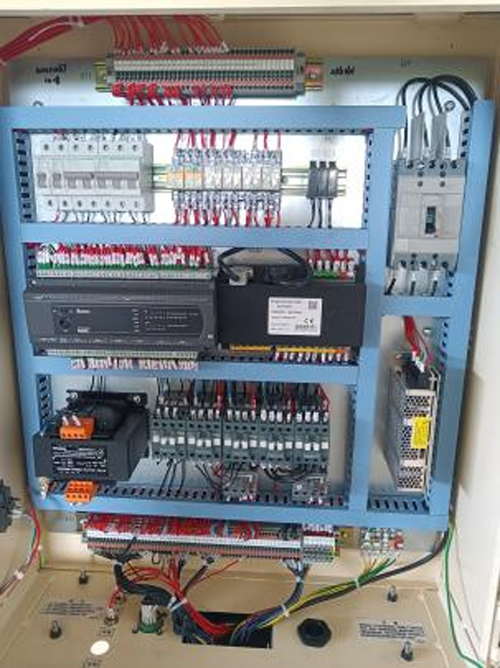

Details of Concertina Blade Wire MachineThe machine is controlled by a PLC, which can automate the entire production process, provide precise control and more efficient fault diagnosis capabilities, and make operation simpler.

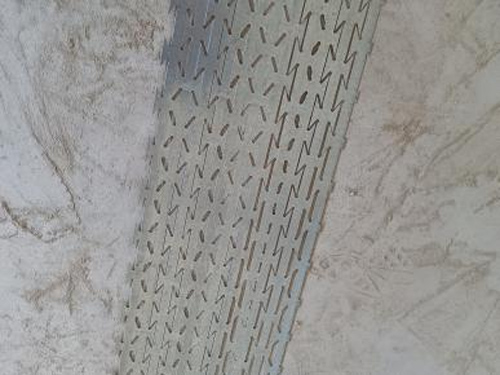

detail-of-concertina-blade-wire-machine-7.jpgThe products produced by the machine are of stable and uniform quality, and can consistently produce products with consistent blade thickness, blade spacing, blade length and core wire diameter, and meet the product industry production standards.



Parameter of Concertina Blade Wire Machine

Model

25T

40T

63T

Coiling Machine

Voltage

3 phase 380V/220V/440V/415V,50HZ or 60HZ

Power

4kw

5.5kw

7.5kw

1.5kw

Producing Speed

70times/min

75times/min

120times/min

3-4Ton/8h

Pressure

25Ton

40Ton

63Ton

--

Material thickness and wire diameter

0.5±0.05(mm),according to customers' requirement

2.5mm

Material of Sheet

GL and stainless steel

GL and stainless steel

GL and stainless steel

--
