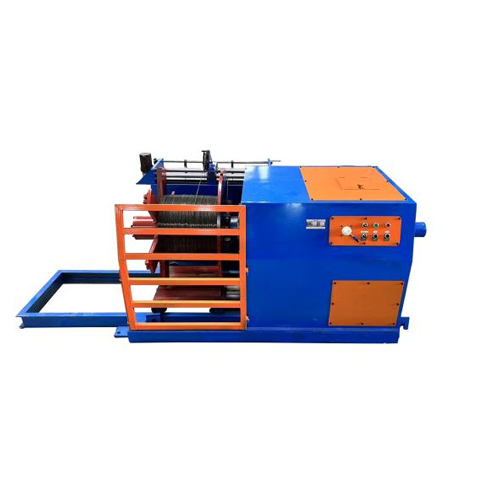

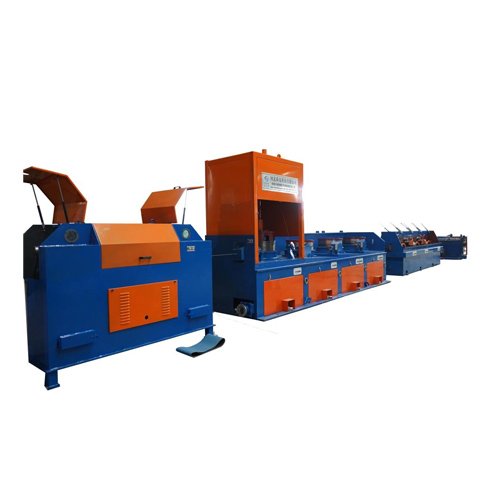

Hydraulic take-up | Straight-in type |
|
|

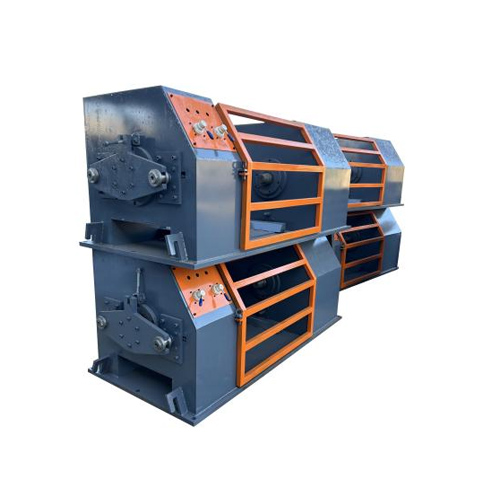

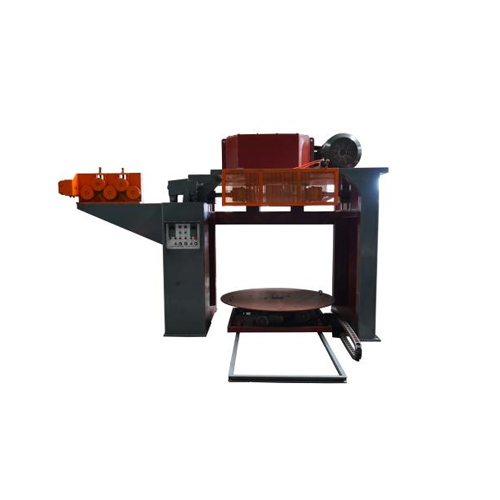

Spool take-up | Inverted type |
|
|

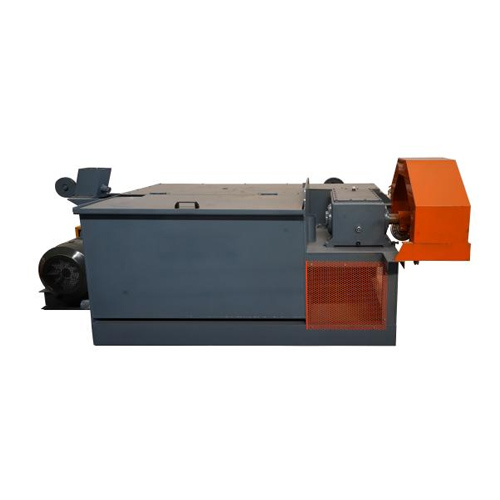

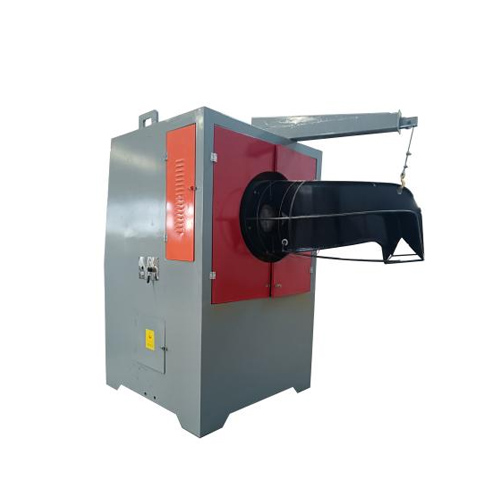

Trunk take-up | Water tank type |
|
|

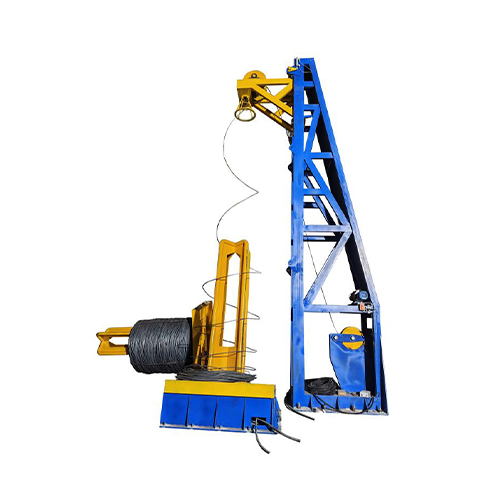

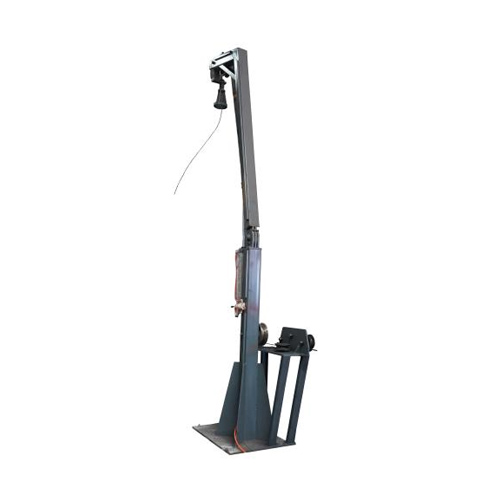

Pneumatic pay-off | Hydraulic pay-off |
|
|
| Picture | Details |

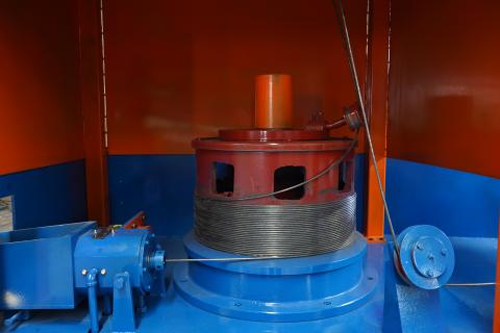

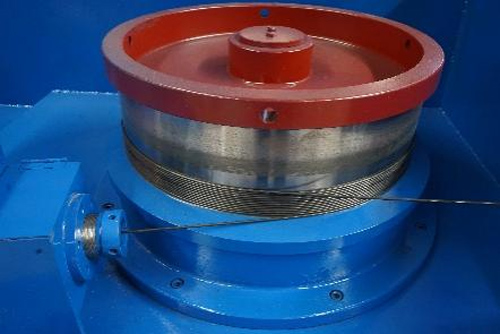

![]() | Capstan: The wire drawing capstan is made of ZG45 cast steel with a tungsten carbide coating on the surface, which can significantly improve the performance of the substrate surface and extend the service life of the components. |

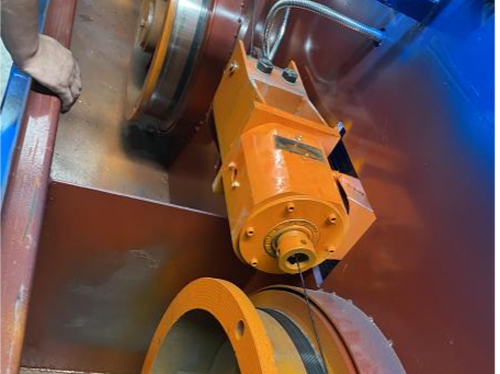

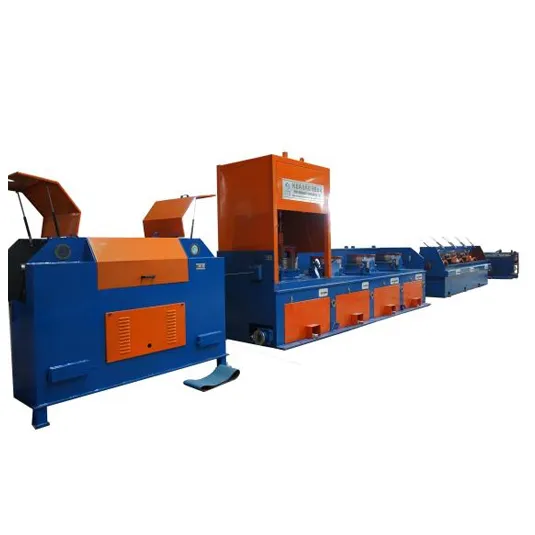

![]() | Rotary mold box: The wire drawing die can rotate evenly in the rotating die box, thus avoiding excessive wear of the die caused by the steel wire, improving the life of the die and the stability of product quality. |
![]() | OTO Type: The overall design of the wire drawing machine adopts the OTO type. The first pass is in the pulley form, which can accumulate wire without a sliding sleeve. When the front wire pay-off temporarily stops working, the subsequent wire drawing process can also continue to run for a period of time by relying on the accumulated wire; at the same time, it is equivalent to extending the stay time of the steel wire on the reel, which is beneficial to the cooling of the steel wire. |
Model | STM-900 | STM-800 | STM-700 | STM-600 | STM-400 |
Drum diameter(mm) | 900 | 800 | 700 | 600 | 400 |
Drawing passes(time) | 9 | 9 | 9 | 10 | 10 |
Max.inlet Wire Diameter(mm) | 8-14 | 8-10 | 6.5-8 | 5.5-6.5 | 1.8-2.5 |
Min.outlet Wire Diameter(mm) | 3-5 | 3-4 | 2.5-3 | 1.8-2 | 0.75-1 |
Drawing speed(m/min) | 300 | 360 | 480 | 750 | 840 |
Motor Power | 90-110 | 55-90 | 55-75 | 22-37 | 7.5-15 |
Weight(T) | 9500 | ||||
Diamension(mm) | 10000*1800*1300 | ||||
