Wire Powder Coating Line

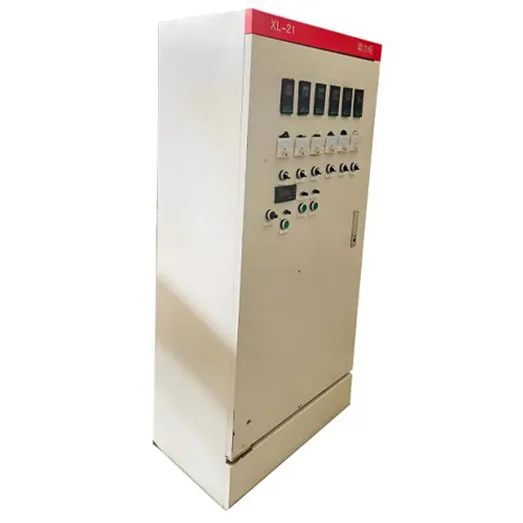

Electrical control cabine

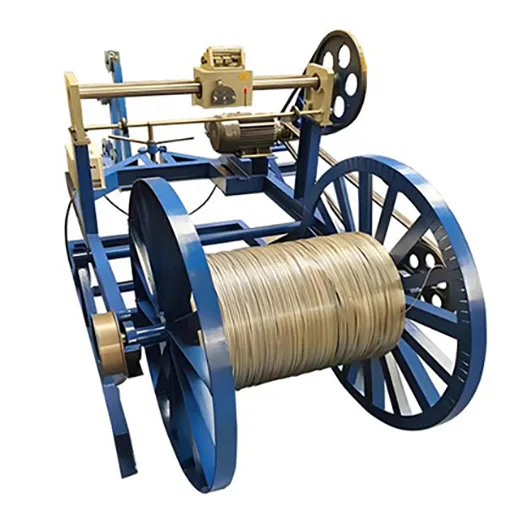

Wire reel

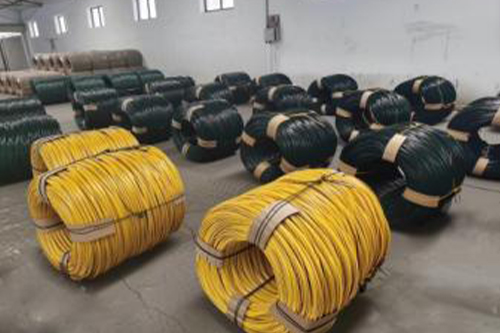

The products produced by our coating machines are of consistent and stable quality, with uniform film thickness, no eccentricity, smooth surface, uniform color, and sufficient tensile strength, chemical corrosion resistance, UV resistance, and other physical properties.

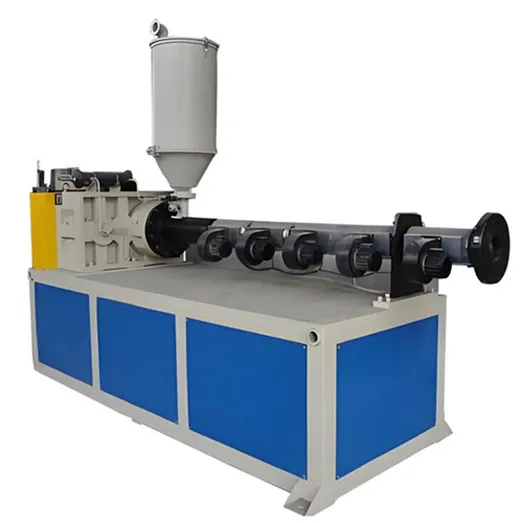

The core equipment of the entire production line is the plastic extruder, which has a high plasticizing capacity and can ensure that the PVC material can be fully melted and homogenized.

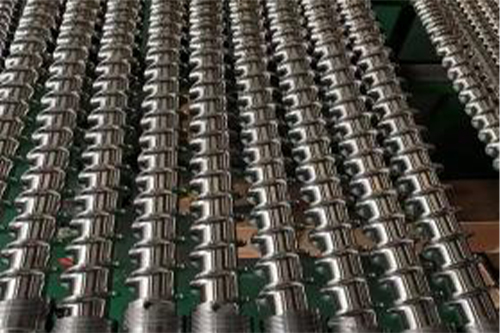

The screw is made of high-strength alloy steel and chrome-plated to meet the high corrosion resistance and wear resistance required in PVC processing. The screw features a special design to reduce shear heat generation and prevent PVC from decomposing due to localized overheating.

Material of Extruder and screw

38CrMoAl

Screw diameter

Φ45mm

Screw speed

11-110r/min

Wire diameter

0.4-4.0mm

Production capacity

60kg

Motor

11kw

Material of Electric heating circle

cast aluminium

Material of water sink

Stainless steel

Length of water sink

4000mm

Type of the drive

Wheel drive

Diameter of the drive wheel

Φ580mm

Material of the drive wheel

Steel

Motor

3kw
