C/Z Purlin Roll Forming Machine

The CNC CZ integrated electric forming machine can produce C-type, Z-type, or C/Z interchangeable purlins from steel coils through roll forming. It consists of a feeding system, forming system, control system, and hydraulic system, and features high automation, fast specification changeover (one-button switching), automatic fixed-length cutting, and punching. Customers looking for a cz purlin roll forming machine for sale, purlin roll forming machine for sale, or purlin machine for sale can rely on ShunMao for efficient and reliable production solutions.


Details of C/Z Purlin Roll Forming Machine

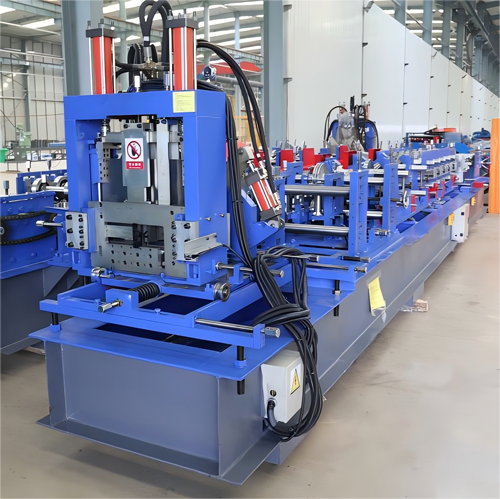

Finished product

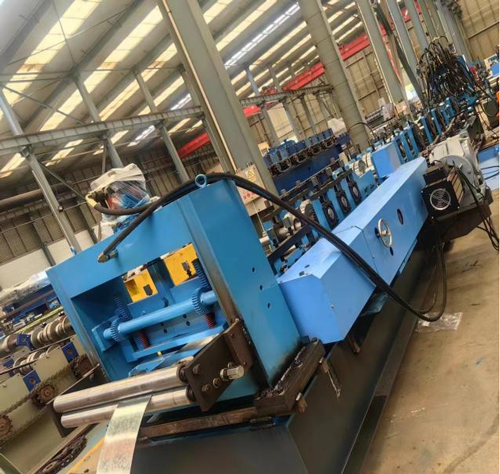

Feeding

Finished product

Feeding


PictureDetails

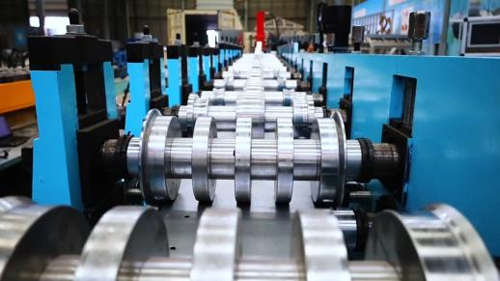

Details of C/Z Purlin Roll Forming MachineThe purlin machine adopts a gate-style structure, with a 40mm thick vertical plate and a 25mm thick base plate welded together using a tooling welding fixture, achieving a positioning accuracy of 0.1mm. After welding, the base plate is machined for verticality using a milling machine, and the bearing holes and bearing seat slides are machined using CNC milling. Many customers also inquire about the cz purlin roll forming machine price, purlin machine price, and purlin roll forming machine price before selecting the most suitable equipment.

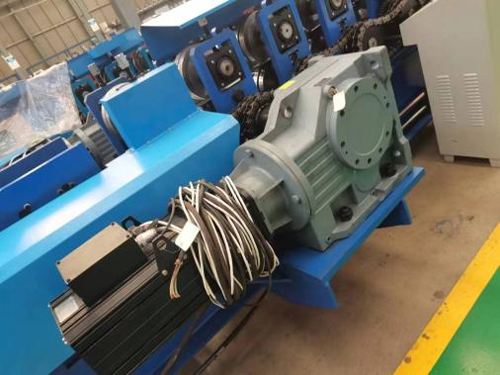

Details of C/Z Purlin Roll Forming MachineThe gearbox transmission has a compact structure and good meshing performance, providing higher transmission accuracy and more stable operation, reducing human operation errors, improving product quality, and its compact design saves installation space for the motor and reducer. To better understand the machine's operating process, customers can also request a purlin roll forming machine video for demonstration and technical evaluation.

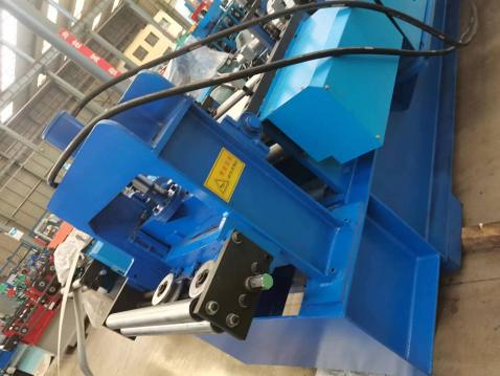

Details of C/Z Purlin Roll Forming MachineThe feeding guide rail is made of wear-resistant alloy material and the surface is precision machined to ensure accurate guidance and no deviation when feeding the sheet material. At the same time, the contact surface between the guide rail and the sheet material is smooth, which can effectively avoid scratches on the sheet material surface and ensure the appearance quality of the finished product. As a professional cz purlin roll forming machine factory, ShunMao works with global customers as one of the trusted cz purlin roll forming machine manufacturers and experienced cz purlin roll forming machine suppliers, delivering high-quality customized production lines.

ShunMao is also recognized as a reliable purlin roll forming machine factory, one of the leading purlin roll forming machine manufacturers, and a trusted purlin roll forming machine suppliers for customers worldwide. We provide customized solutions, stable machine quality, and professional technical support to help improve production efficiency.


Parameter of C/Z Purlin Roll Forming Machine

Feeding method

Guide shaft + guide wheel

Straightening

Two straightening units in total, consisting of a 10-roller CZ-specific two-axis straightening unit and a 4-roller two-axis straightening unit.

Punching

Single hole punched at the bottom of the profile + double hole punched

Shearing

Stepless shearing system after forming

Changeover method

Electric changeover

Roll material

GCr15

Spindle material

45#
