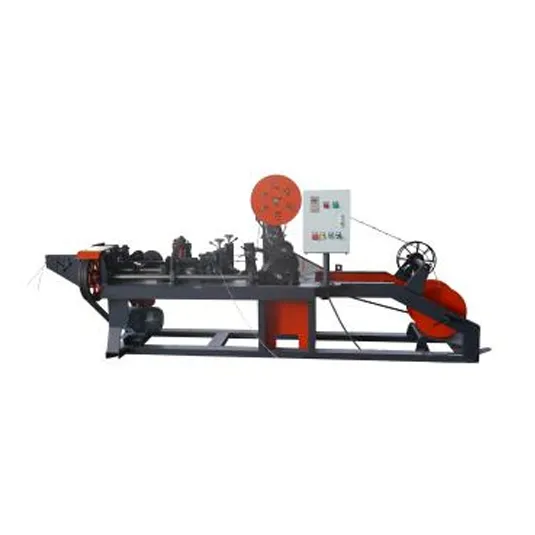

ShunMao Automatic Barbed Wire Making Machine Overview
ShunMao manufactures PLC-controlled barbed wire making machine for continuous production of single-wire, double-twisted and reverse-twisted barbed wire. As a barbed wire making machine manufacturer in China, we provide three standard configurations with different finished-wire structures, wire diameter ranges and production capacities. The machine body is constructed from cast steel, while PLC control helps automate the production process and makes production status easier to monitor.
For customers comparing a reliable barbed wire making machine supplier, machine selection should start with the required barbed-wire type, main-wire diameter, barb-wire diameter, barb spacing and target output. ShunMao can recommend a suitable configuration and provide technical information, production testing and after-sales support according to the project requirements.
Types of Shunmao Barbed Wire Making Machine
The three models on this page are designed for different barbed-wire structures. Selecting the correct type first helps avoid choosing a machine only by price or capacity.
| Model | Finished Barbed Wire Type | Main Wire Diameter | Capacity | Best Used When |
| CS-A | Double twisted barbed wire | 2.0–3.0 mm | 80–160 kg/h | The project requires conventional double-twisted barbed wire and the highest listed capacity among the three models. |
| CS-B | Single wire barbed wire | 2.0–3.0 mm | 50–100 kg/h | The required finished product is single-wire barbed wire. |
| CS-C | Double wire reverse twisted barbed wire | 1.6–2.8 mm | 70–150 kg/h | The required product is reverse-twisted barbed wire with the corresponding wire range. |
Quick selection rule: confirm the finished barbed-wire structure first, then check main-wire diameter, barb-wire diameter, barb spacing and required hourly output before requesting the machine quotation.
Details of Barbed Wire Making Machine
As one of the professional wire making machine manufacturers, ShunMao also supplies a wide range of wire processing and wire mesh production equipment for different industrial applications.
| Picture | Details |

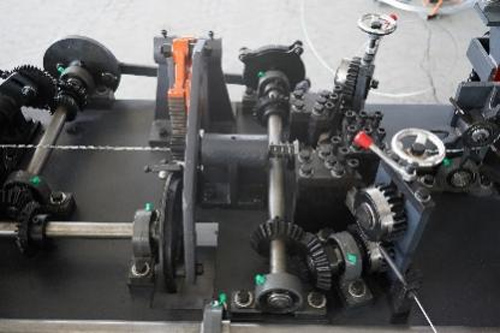

 | Superior Quality: The machine body is constructed of cast steel, and all components are high-quality, durable, and the overall design is both practical and aesthetically pleasing. Customers interested in a barbed wire making machine for sale can choose different configurations according to their production capacity requirements. |

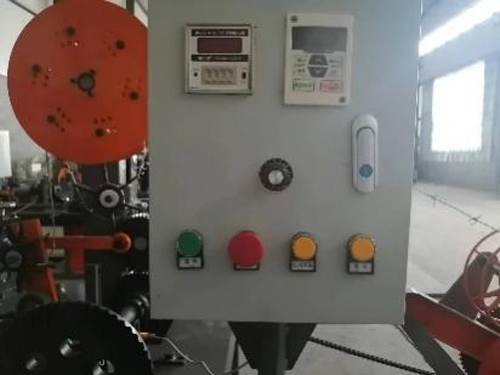

 | PLC: The machine is controlled by a PLC, automating the production line and enabling more accurate monitoring of production progress while ensuring product stability and reliability. When problems arise, they can be diagnosed and repaired easily. |
Before selecting a model, many customers compare both the barbed wire machine price and barbed wire making machine price based on production capacity, wire diameter range, automation level, and configuration requirements. In addition to the purchase price, the overall barbed wire machine cost should also consider energy consumption, maintenance expenses, spare parts, and labor costs during long-term operation. For customers sourcing equipment internationally, ShunMao is a trusted barbed wire making machine China manufacturer with extensive export experience and professional technical support.
Parameter of Barbed Wire Making Machine
Parameter | Cs-A | Cs-B | Cs-C |
Type | Double twisted barbed wire | Single wire barbed wire | Doulbe wire reverse twisted barbed wire |
|
Voltage/power | 380V/2.2Kw | 380V/2.2Kw | 380V/2.2Kw |
Main wire diameter | 2.0-3.0mm | 2.0-3.0mm | 1.6-2.8mm |
Barbed diameter | 1.6-2.4mm | 1.6-2.4mm | 1.6-2.4mm |
Barbed distance | 7.5-15cm
3/4/5/6 inches | 7.5-15cm
3/4/5/6 inches | 7.5-12.5cm
3/4/5inch |
|
Twist speed | 135times/min | 135times/min | 135times/min |
Capacity | 80-160Kg/h | 50-100Kg/h | 70-150Kg/h |
Mian size | 3800X1050X1300mm | 3200X1050X1300mm | 3200X1050X1300mm |
Weight | 900Kg | 850Kg | 850Kg |
As one of the leading barbed wire machine suppliers, we offer complete production solutions and technical support for global customers.
How an Automatic Barbed Wire Machine Works
In a typical barbed-wire production process, steel wire is fed into the machine, the barb section is formed at the required interval, the line wire is twisted according to the selected product structure, and the finished barbed wire is collected for handling or coiling. PLC control coordinates the production process and helps operators monitor operation.
Wire Feeding: Main wire and barb wire are fed into the machine.
Barb Forming: Barb wire is positioned and formed at the preset spacing.
Twisting: The selected machine configuration creates the required twist structure.
PLC Control: Production status and machine operation are monitored through the control system.
Finished Wire: Produced barbed wire is collected for subsequent handling and packing.
For a step-by-step explanation, see How Does an Industrial Barbed Wire Machine Work?
How to Choose the Right Barbed Wire Making Machine
The model should be selected according to the barbed wire you plan to manufacture rather than price alone. Before requesting a quotation, confirm the following project information. If you have any questions or need any help, please reach to our experts directly!
| Information to Confirm | Why It Matters |
| Required finished barbed-wire type | Determines whether CS-A, CS-B or CS-C is the appropriate starting model. |
| Main wire diameter | Must fall within the model's specified processing range. |
| Barb wire diameter | Used to verify compatibility with the required finished wire. |
| Barb spacing | Determines whether the standard spacing range meets the product specification. |
| Target capacity | Allows the machine output range to be compared with production requirements. |
| Voltage / destination | Needed to confirm electrical configuration and export requirements. |
| Required supporting equipment | Helps determine the complete production and handling scope for the project. |
The final quotation depends on the selected barbed-wire type, required production capacity, wire diameter range, control configuration and any supporting equipment included in the project. CS-A, CS-B and CS-C are designed for different finished-wire structures, so the lowest-priced model is not necessarily the correct machine for the required product.
The total barbed wire machine cost should also consider electricity consumption, routine maintenance, wear parts, labor and long-term production efficiency. For customers evaluating an automatic barbed wire making machine price, send ShunMao the required finished-wire type, wire diameter, spacing, target output, voltage and destination so the quotation can be based on the actual configuration.
Why Choose ShunMao as Your Barbed Wire Machine Manufacturer?
ShunMao has been involved in the machinery industry for nearly three decades and serves customers in dozens of countries. The company has its own design and production team with experience in mechanical manufacturing and equipment design. For buyers comparing barbed wire machine manufacturers, this provides a clearer basis for evaluating production capability, machine configuration and technical support.
Support Before Ordering
Before an order is confirmed, ShunMao provides consultation to help customers understand the equipment and select or customize a configuration that matches the required barbed-wire type, wire diameter and production target.
Production and Pre-Shipment Testing
During machine production, a dedicated person follows the progress and keeps in contact with the customer. ShunMao states that each machine is tested and debugged before leaving the factory so key operating functions can be checked before shipment.
Installation and After-Sales Support
After shipment, ShunMao follows logistics progress and provides installation and usage guidance after the equipment arrives. Dedicated personnel also follow up on after-sales issues.
Factory and Export Support
For overseas buyers sourcing from a barbed wire machine factory, ShunMao combines machine production with international project communication and after-sales support. The company established its foreign trade department in 2012 and continues to serve customers in multiple overseas markets.
