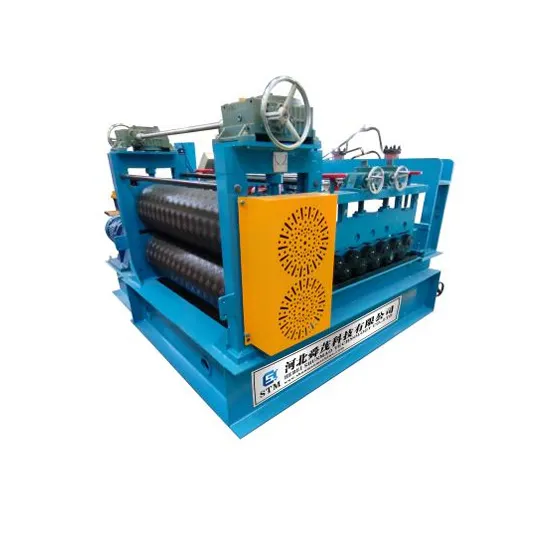

Embossing Sheet Machine

Name: Embossing Sheet Machine
Brand: HEBEI SHUNMAO TECHNOLOGY CO., LTD

Embossing machines imprint specific patterns onto metal sheets or rolls to achieve anti-slip or aesthetic purposes. Patterns can be customized according to customer needs, and the machines are suitable for a wide range of materials and come in various models, capable of producing products of various thicknesses and sizes.

Request A Quote

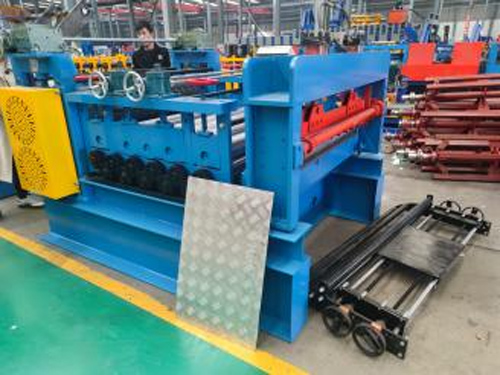

Details of Embossing Sheet Machine

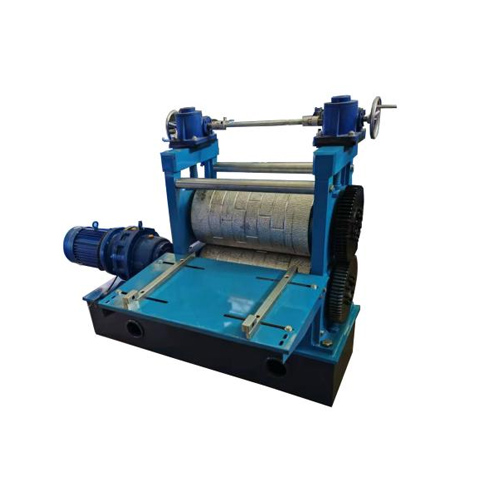

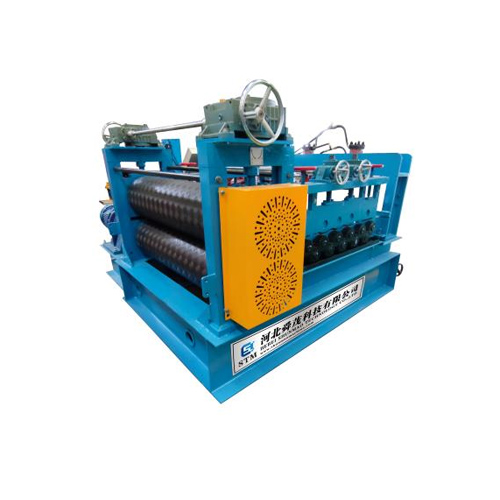

Small embossing machine	Embossing machine

Picture	Details
	The machine body is made of thick steel plate welding, and the overall design adopts a frame structure to ensure the stability of machine operation and provide sufficient pressure for the embossing process, while also providing better assistance for the accuracy of embossing.

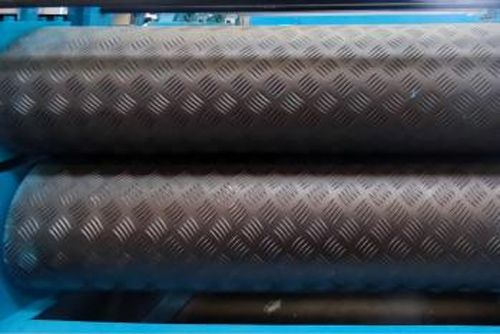

	The embossing machine mold is made of alloy mold steel, which has clear texture, good wear resistance and service life, and can be used for embossing operations with high production speed.

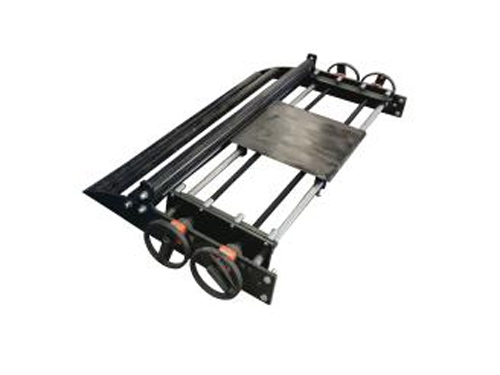

	A board conveying mechanism is added to the board feeding section to limit the lateral deviation of the board and prevent it from running off-track during conveying; at the same time, by adjusting the tension of the conveyor belt, the board is prevented from slipping or wrinkling during conveying, further improving the leveling accuracy.

Parameter of Embossing Sheet Machine

Embossing roller size	Ø400-1300mm
Embossing roller pattern	convex, corn kernel, pearl, ball and other patterns(custom pattern are available).
Embossing material	Aluminum, carbon steel plate etc.
Product thickness range	0.3-3mm
Embossing depth	0.1-0.3mm(Adjustable)
Finished width	700-1200mm
Roller material	High-strength alloy steel, tungsten carbide, forged steel
Pressure mode	Reduction pressure adjustment
Technical process	DeCoiler → Feed Guide → Embossing (Knurling) Forming → Fixed Size Feeding → Automatic Cutting → Automatic Conveying → Finished Product Discharge
