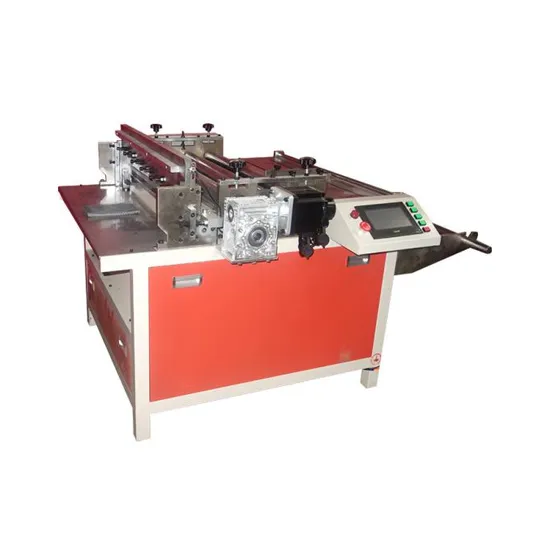

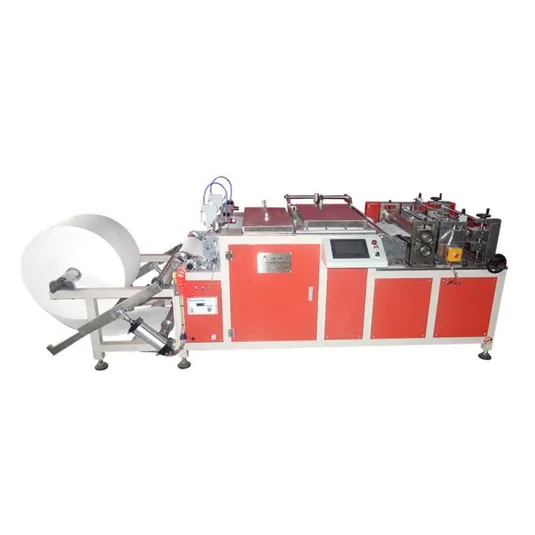

Filter Core Machine

Our main products are paper folding filter cartridge machines, which are used to produce air filters or oil filters. The core processes include filter material preparation, folding and forming, end cap curing, cleaning and assembly to form high-efficiency filter cartridges with a large filtration area, which are widely used in water treatment, chemical, food and beverage and other fields.


Details of Filter Core Machine

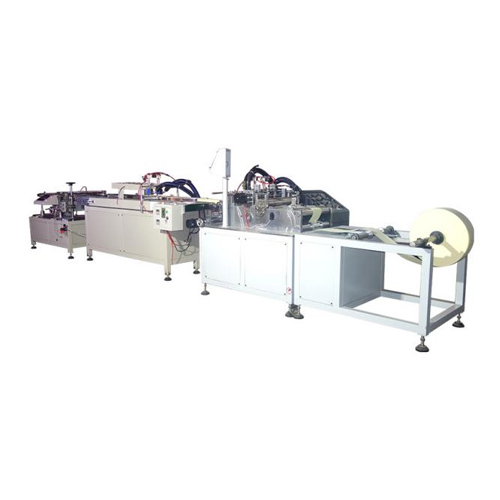

Plate filter machine

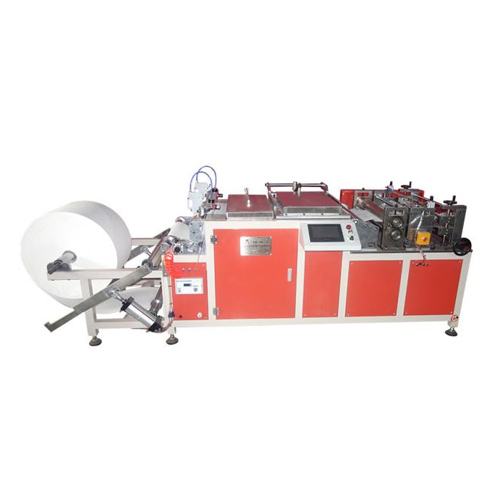

Rotary drum filter machine

Plate filter machine

Rotary drum filter machine

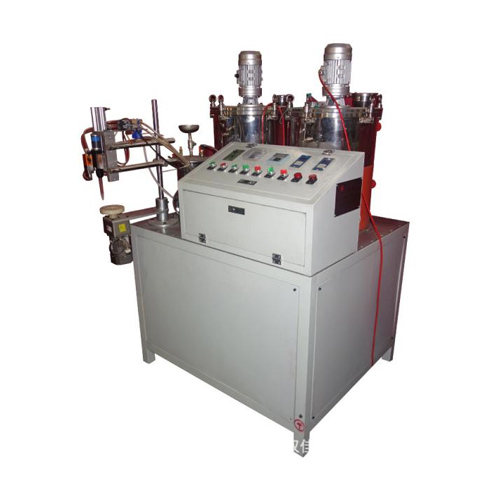

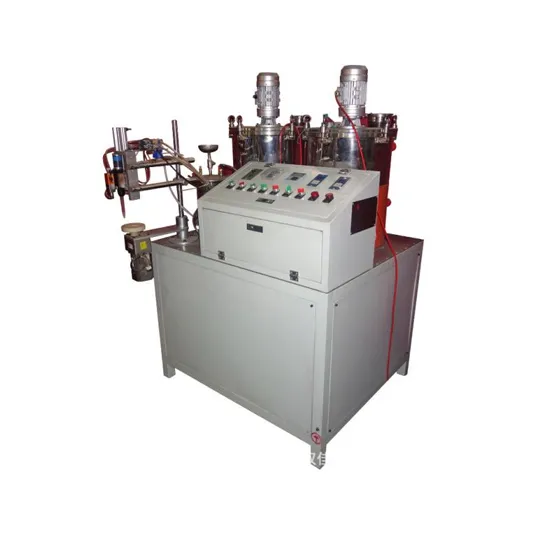

Glue injection machine

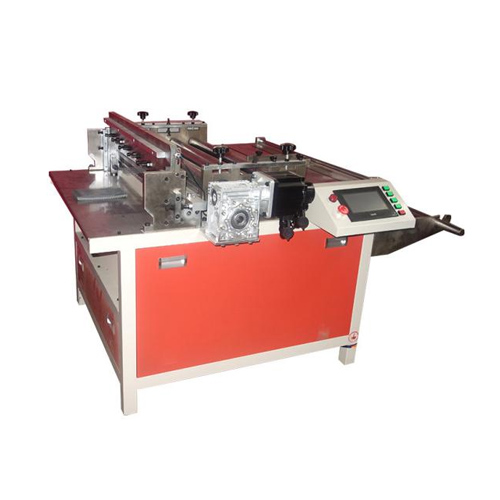

Cutting machine

Glue injection machine

Cutting machine


PictureDetails

Details of Filter Core Machine

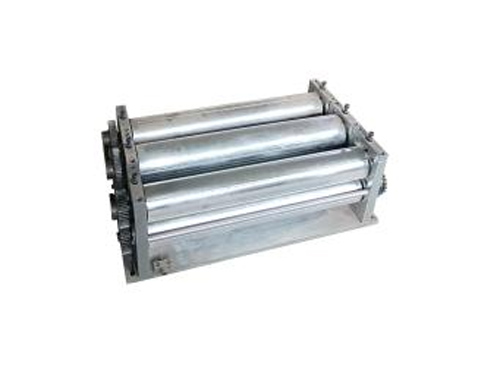

The paper feed rollers, creasing rollers, and other components are all made of high-quality steel selected based on their intended use. The creasing rollers, which require clear creasing, are made of 45# steel, while the heating rollers, which need good thermal conductivity, are made of steel with excellent thermal conductivity. This ensures smooth production and protects the filter paper from damage.

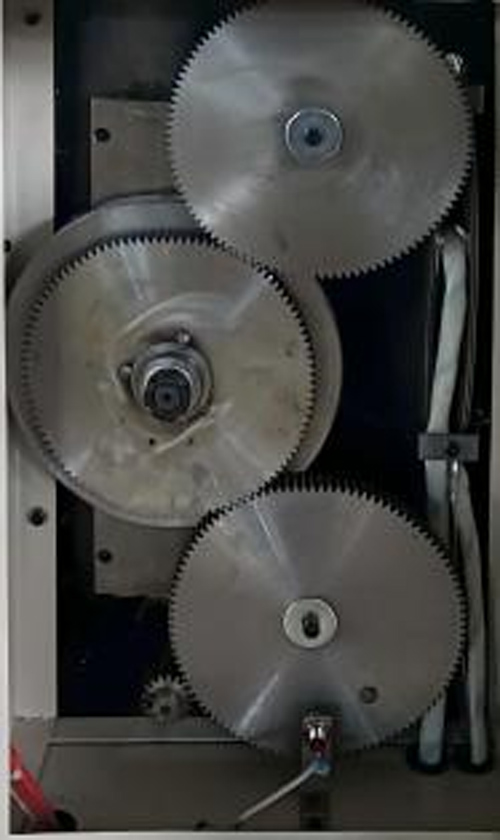

Details of Filter Core MachineAs the flat filter paper medium passes between these two relatively rotating, matched toothed rollers, the rollers fold it into uniform zigzag pleats. This mechanically driven and precisely timed system ensures that the height, depth, and spacing of each pleat are consistent, which is crucial for maximizing the filtration surface area and ensuring the filter cartridge's filtration efficiency.

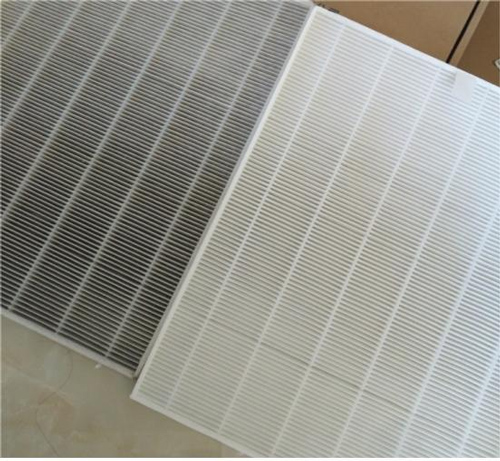

Details of Filter Core MachineCompared to flat filters offering the same filtration area, the pleated design is more compact and can be installed in space-constrained applications. This allows the filter cartridge to capture more contaminants, improving filtration efficiency.



Parameter of Filter Core Machine

Effective width

800mm

Folding height

8-55mm (adjustable)

Folding speed

20-110 folds/min

Heating and setting

0-170%C (automatic temperature control)

Total power

5KW

Paper feed speed

0.5-12m/min

Daily circumference width

35-800mm

Adjustable printing distance

8-60mm

Maximum print width

800mm
