Slitting Line

Name: Slitting Line
Brand: HEBEI SHUNMAO TECHNOLOGY CO., LTD

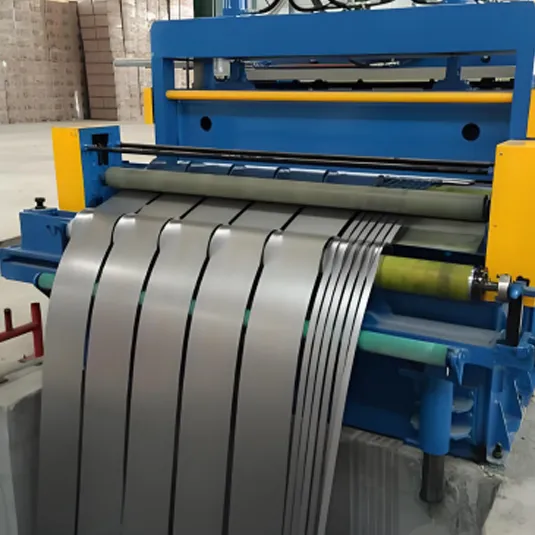

A slitting line is a production line that precisely cuts metal coils longitudinally into the required dimensions. It is widely used in industries such as motors, transformers, home appliances, and automobiles. Through steps such as uncoiling, straightening, slitting, and winding, it achieves efficient and high-precision processing, improving material utilization and product quality.

Request A Quote

Details of Slitting Line

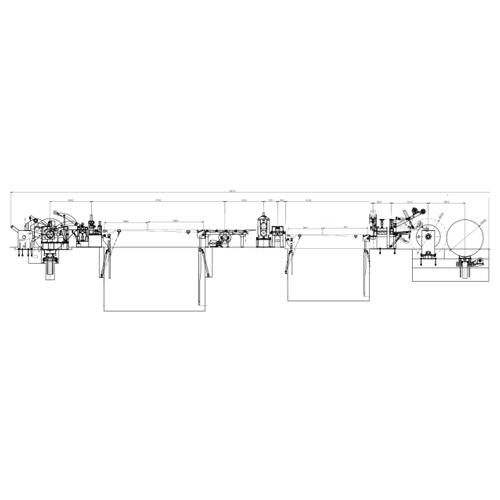

Layout diagram

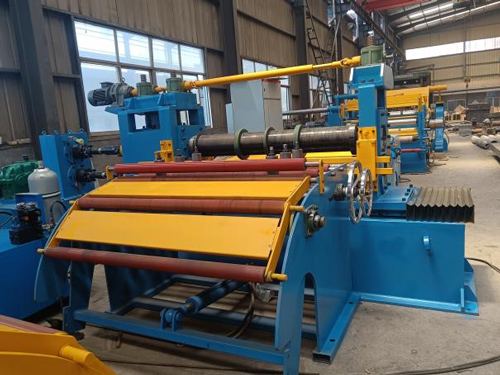

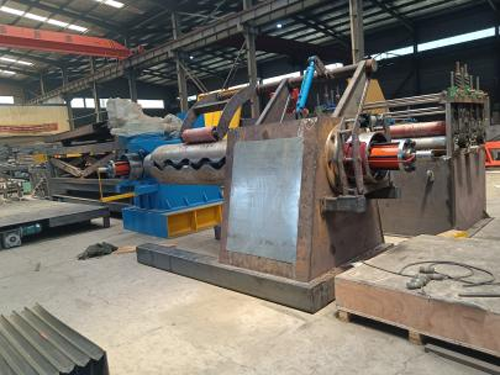

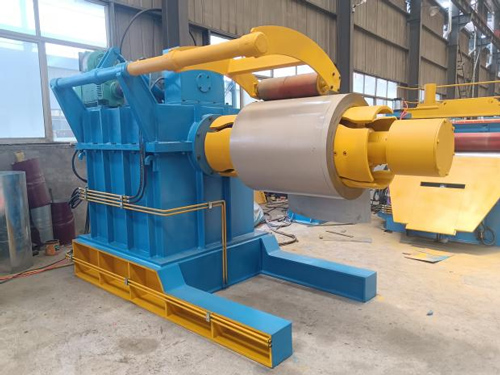

Uncoiling machine	Slitting machine

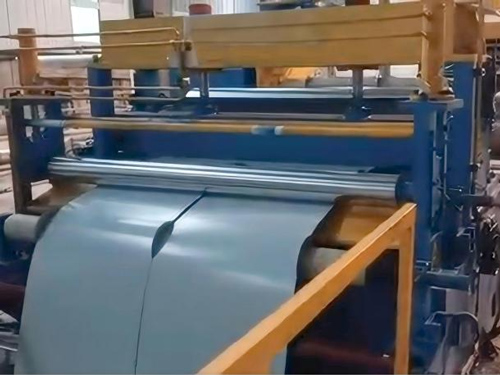

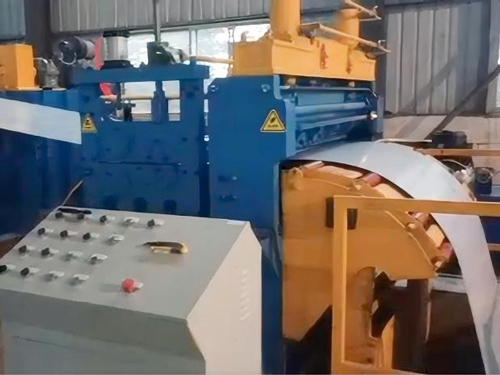

Leveling machine	Calibration machine

Picture	Details
	Our slitting machines can be divided into longitudinal slitting lines and transverse slitting lines. They can cut steel bars as well as steel plates of various sizes. The machines are flexibly designed and experienced, and can meet the needs of various customers.

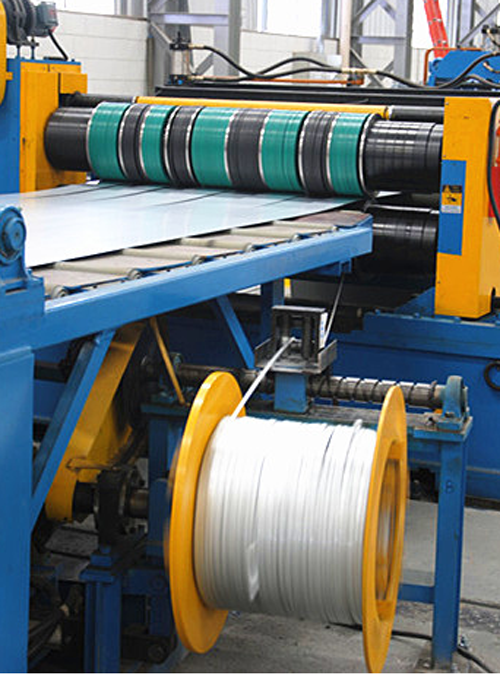

	Horizontal waste edge winder consists of a winding drum, a frame and a transmission system.The reel of the winder is mechanically expanded and contracted to facilitate unloading.The winder is equipped with a cloth device to wind the yarn evenly.The reel is driven by an AC motor with adjustable speed and winding torque.
	The entire production line's machine frame is welded from thick steel plates, with the most crucial component being the cutter shaft. The shaft material is 42CrMo, and the surface is plated with hard chrome.

Parameter of Slitting Line

Raw material	Cold rolled steel sheet, galvanized sheet, etc
Steel coil width	800-2000 mm	500-1250 mm
Steel strip thickness	1.0~6.0mm	0.5-2 mm
Steel coil ID	Φ500mm/800mm	Φ500mm/Φ610mm (can be customized)
Steel coil OD	Max 2000mm	Max 1600mm
Steel coil weight	≤30tons	≤10tons
