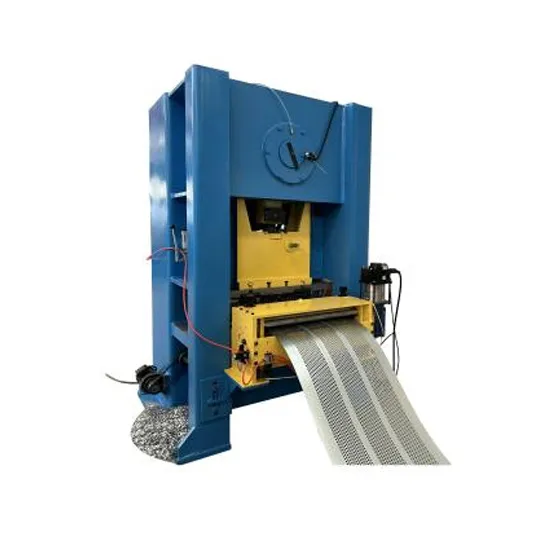

Perforated Metal Mesh Machine

Name: Perforated Metal Mesh Machine
Brand: HEBEI SHUNMAO TECHNOLOGY CO., LTD

Perforated metal punching machines are generally divided into C-type and gantry-type machines. We mainly produce gantry-type perforated metal punching machines, which are suitable for producing perforated metal sheets of various hole shapes and thicknesses. Perforated metal sheets have a wide range of applications, including functional screens and decorative meshes, making them a very widely used type of machine.

Request A Quote

Details of Perforated Metal Mesh Machine

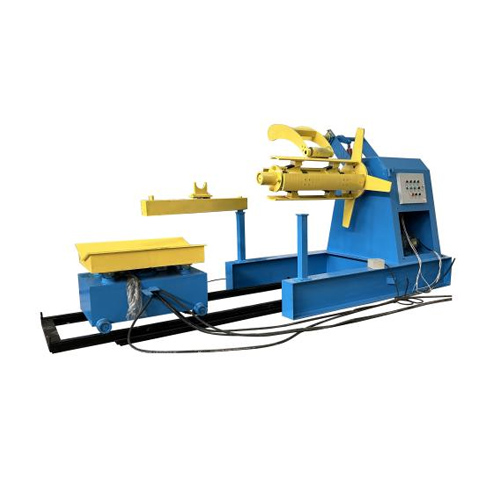

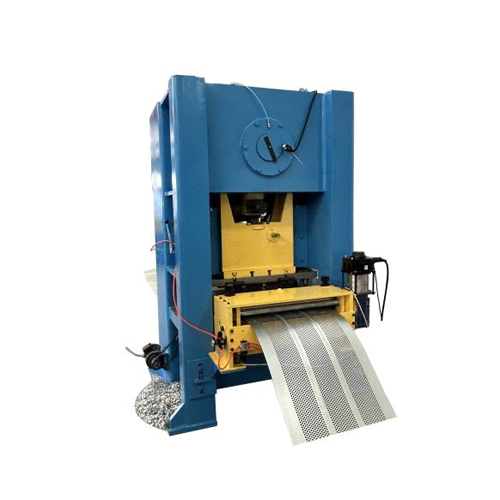

Decoiler	Main machine

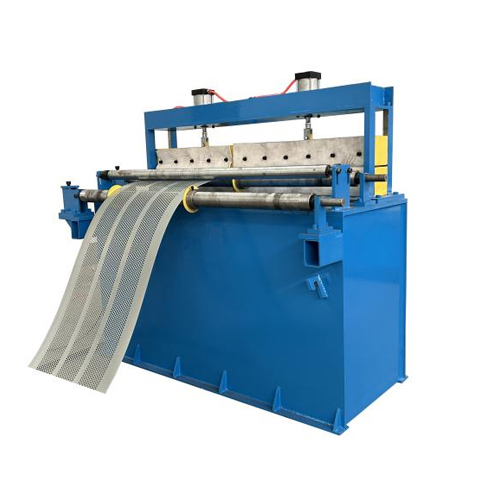

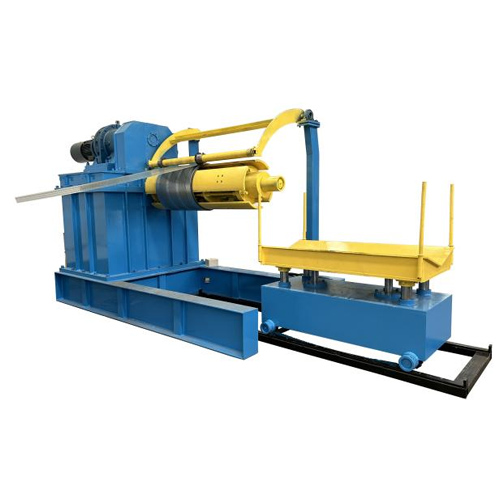

Tensioning Platform	Winding machine

Picture	Details

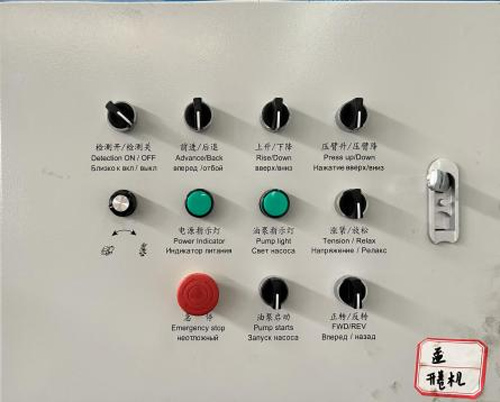

	Both unwinding and rewinding have control panels that automatically control tension and coordinate speed with the main unit. Multiple languages can also be customized to ensure a smooth user experience.

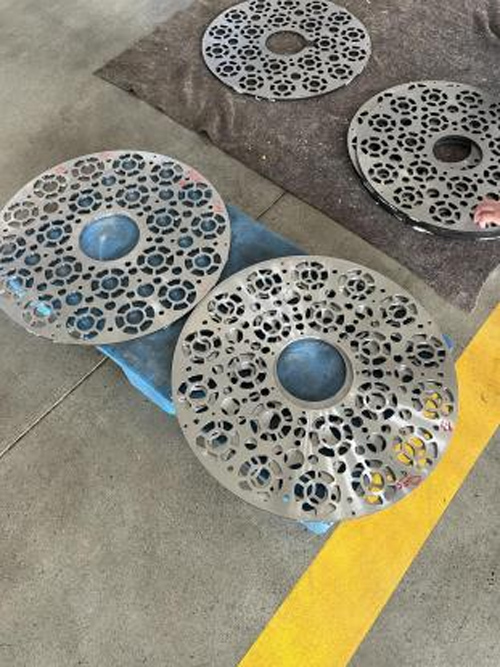

	Our machine's molds are made of high-quality alloy steel, ensuring precise stamping clearances and neat edges. In addition, stamping molds can also be customized according to customer requirements, making them widely applicable.

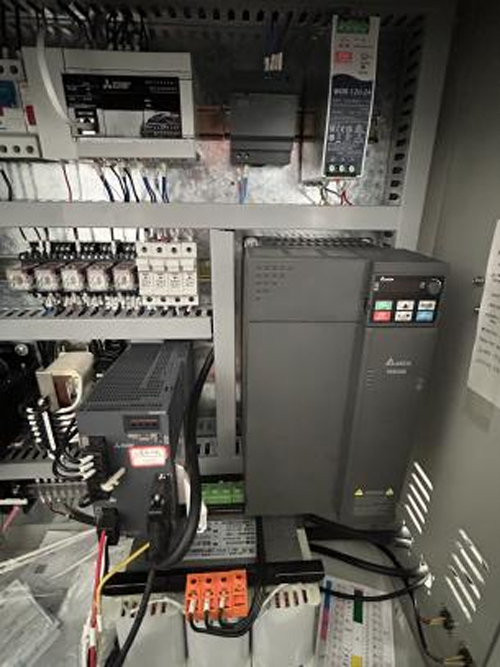

	The entire production line uses high-quality components, such as Mitsubishi PLCs and Delta frequency converters, which improve production efficiency and ensure the durability and smoothness of machine operation during the production process.

Parameter of Perforated Metal Mesh Machine

Model	STM-G800	STM-G1250	STM-G1600	STM-G2000
Nominal Force(KN)	800	1250	1600	2000
Nominal Stroke(MM)	2	3	3	3
Slide Stroke(MM)	30	30	30	30
SPM(MIN)	160-280	160-240	160-220	150-200
Max Die Height(MM)	360	400	400	420
Die Height Adjustment(MM)	50	50	50	50
Boster(F.BL.RT)(MM)	550*980	600*1180	700*1380	800*1550
Boster Opening(F.B*L.R)(MM)	500*950	550*1050	600*1250	650*1450
Between Columns(MM)	1000	1200	1400	1600
Motor Power(KW)	11	18.5	22	30
Air Pressure(MM)	0.5	0.5	0.5	0.5
Net Weight(KG)	9T	12T	15T	19T
