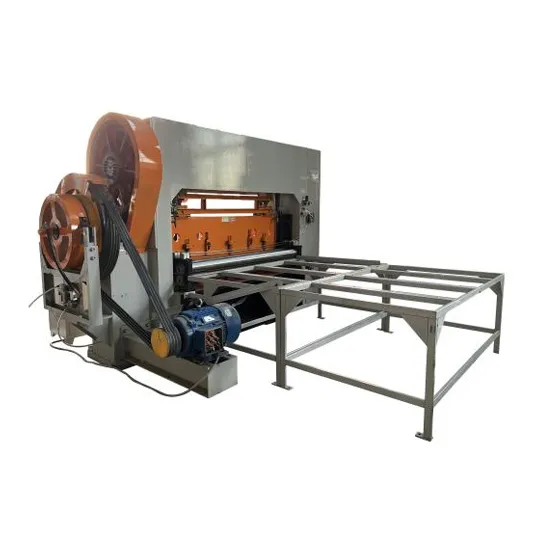

Expanded Metal Mesh Machine

Steel mesh machines are classified into two types based on the type of raw material: sheet-feed and roll-feed. Roll-feed machines require an uncoiler, while sheet-feed machines require a material rack at the feed end.

Request A Quote
Expanded Metal Mesh Machine
Expanded Metal Mesh Machine

Details of Expanded Metal Mesh Machine

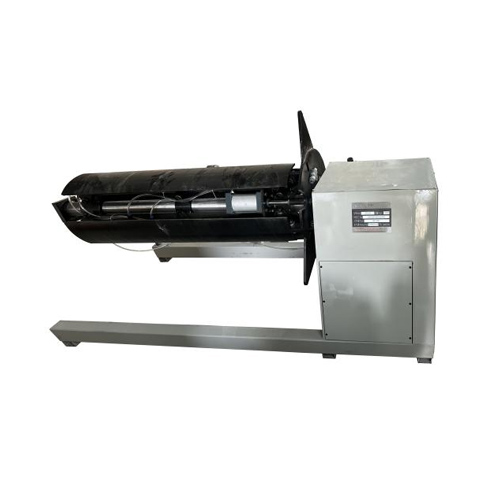

Decoiler

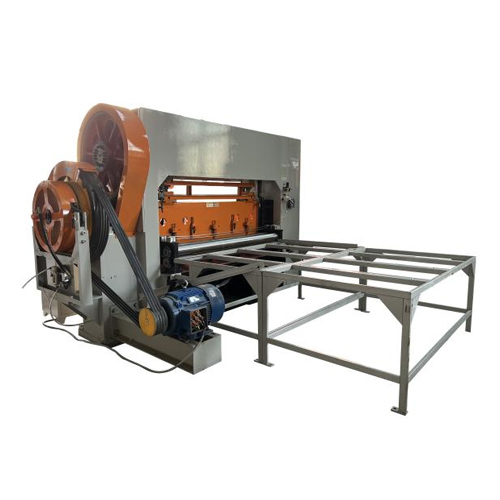

Main machine

Decoiler

Main machine

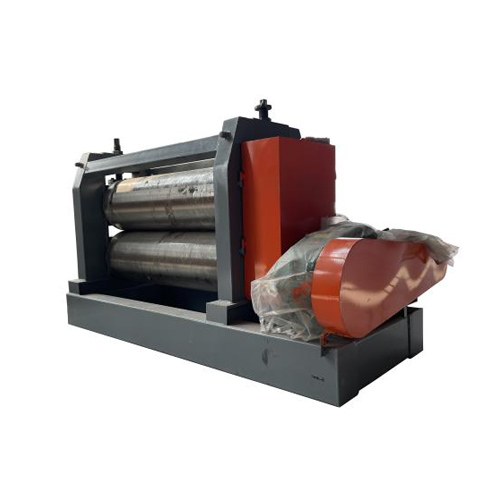

Flattening machine

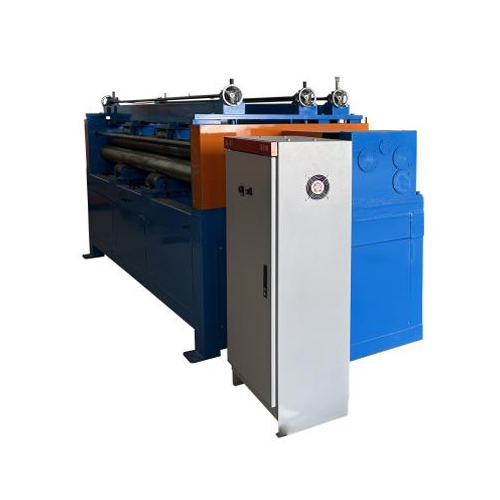

Leveling machine

Flattening machine

Leveling machine

PictureDetails

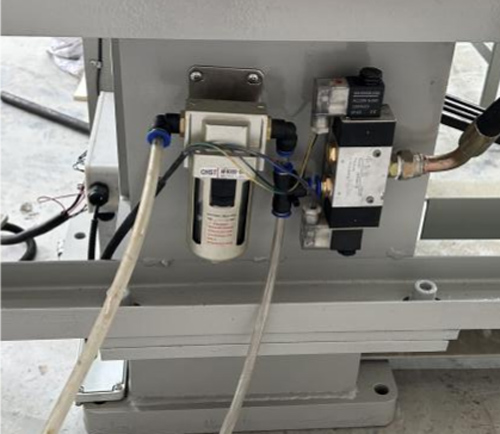

Details of Expanded Metal Mesh MachinePneumatic valve: We use pneumatic clutch device, which has the characteristics of flexible operation, fast response, low maintenance cost, long service life and high safety, and is very suitable for high-frequency operation machinery such as steel plate mesh machine.

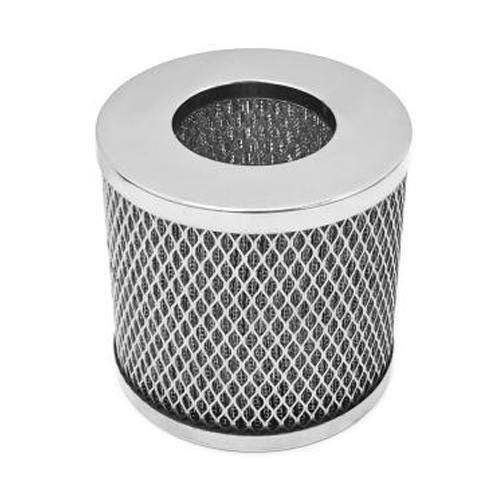

Details of Expanded Metal Mesh MachineExpanded metal mesh has a wide range of uses. It can be used as a functional filter, especially in industries such as automotive, mining, and petroleum. It can also be used as a decorative mesh in many buildings.

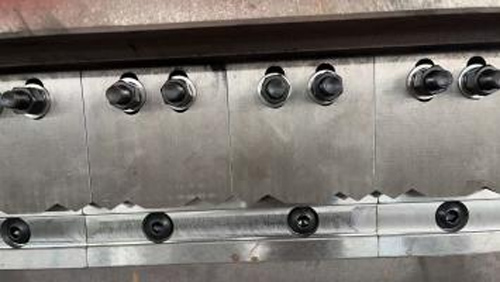

Details of Expanded Metal Mesh MachineThe cutting blades are made of Cr12MoV, which is hard and provides fast and sharp cutting. The entire production line is controlled by a PLC, which ensures fast response and high cutting precision.



Parameter of Expanded Metal Mesh Machine

Type

Max Thickness

Max Net Width

Speed Times/Min

Feeding Distance

Long Way of Mesh

Total Power

Weight

Dimension

Unit

mm

mm

times

mm

mm

kw

t

mm

JQ25-6.3

1.5

650

180

0-5

20

4

1.2

1400×800×1520

JQ25-16

1.5

1000

160

0-5

25

5.5

2

1000×1700×1800

JQ25-25

1.5

1250

160

0-5

30

5.5

3

1100×2070×2080

JQ-40

2.5

1600

80

0-30

80

11

6

1830×3100×2030

JQ25-63

3

2000

67

0-10

100

11

11

3300×3500×2310

JQ25-100

4

2500

65

0-20

200

15

12

3600×2500×3000

JQ25-160

6

2500

55

0-20

200

30

22

3300×6700×2900
