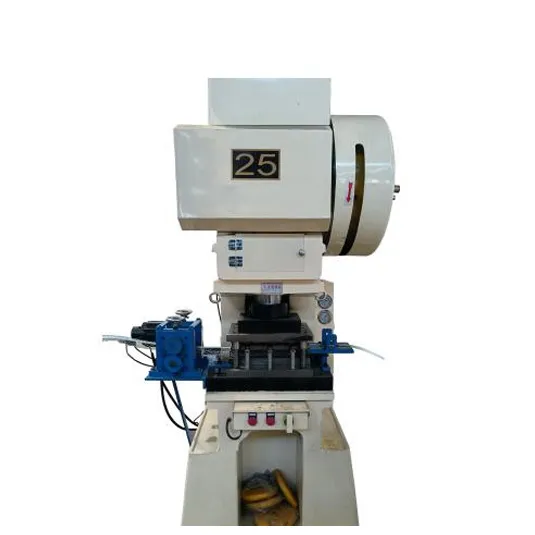

Angle Bead Machine

Name: Angle Bead Machine
Brand: HEBEI SHUNMAO TECHNOLOGY CO., LTD

Angle bead machine is a special type of cold bending forming equipment, mainly used to produce corner bead netting. The equipment consists of several parts, including an uncoiler, a punching machine, and a forming machine, with the forming machine containing a cutting device.

Request A Quote

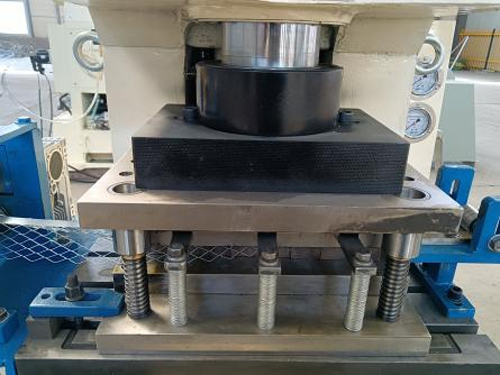

Details of Angle Bead Machine

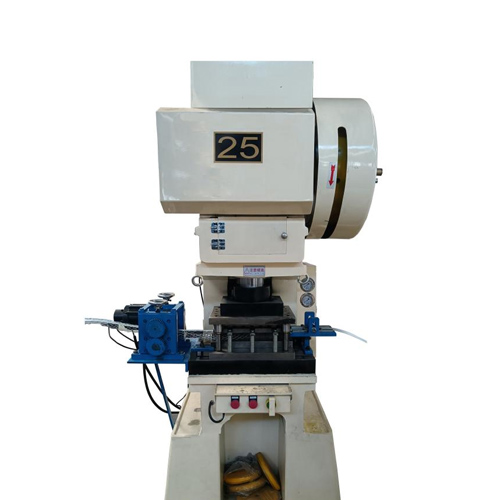

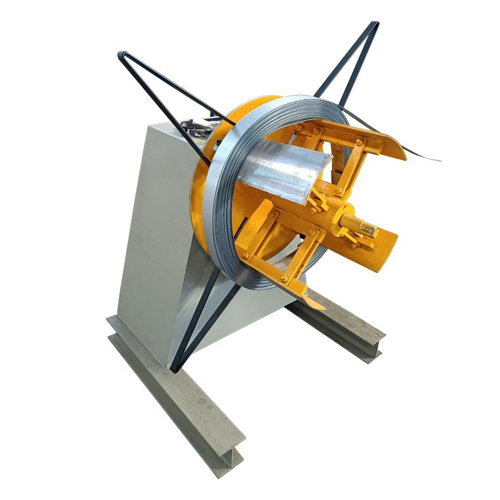

Decoiler	Punching machine

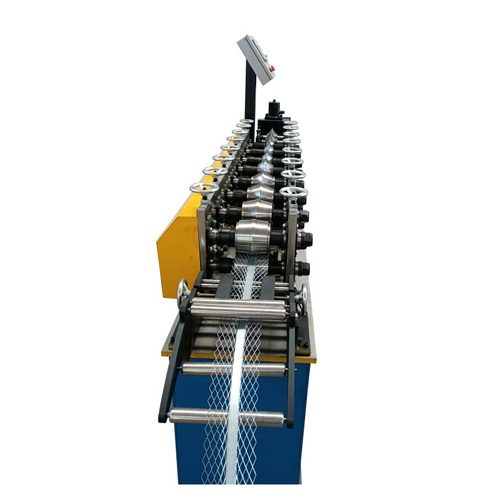

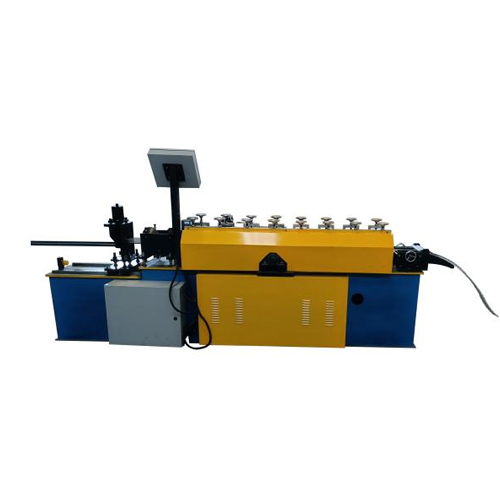

Forming machine	Forming machine

Picture	Details
	The machine product design has very strict precision requirements and is equipped with a precision detection device. If there are unqualified products, production will be stopped immediately to ensure the customer's production efficiency and product quality.

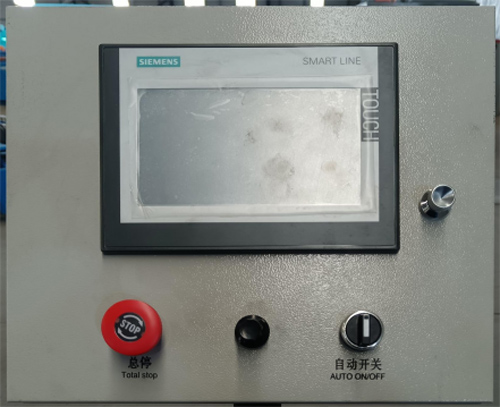

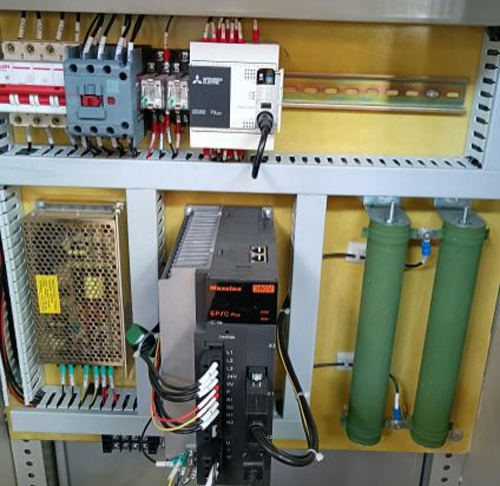

	The machine circuit adopts an integrated approach, which simplifies the equipment installation steps and avoids various problems caused by many circuit installation errors. At the same time, when a circuit malfunctions, it can be detected, adjusted and replaced in time to improve production efficiency.
	The whole machine uses high-quality accessories to improve the service life and performance of the machine, run smoothly, and have low energy consumption, which greatly improves the quality and reliability of the products produced.

Parameter of Angle Bead Machine

Item	Angle bead making machine
Production speed(times/minute)	3000mm/min
Max. Thickness	0.2mm--1mm
Width	30mm-100mm
Rated voltage	380V,50HZ
Motor power(KW)	5.5Kw
Overal diamension(mm)	4500mm1500mm1500mm
Weight(T)	3
