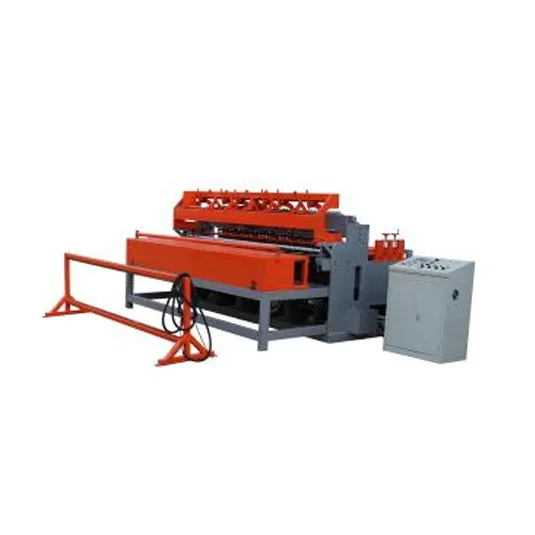

Welded Wire Mesh Machine

Name: Welded Wire Mesh Machine
Brand: HEBEI SHUNMAO TECHNOLOGY CO., LTD

Mesh welding machines can be divided into small mesh welding machines and large mesh welding machines. The wire diameter of the mesh produced by the two is different. Small mesh can be used to produce products such as aquaculture nets, while large mesh can be used in various construction industries such as construction and fences.

Request A Quote

Details of Welded Wire Mesh Machine

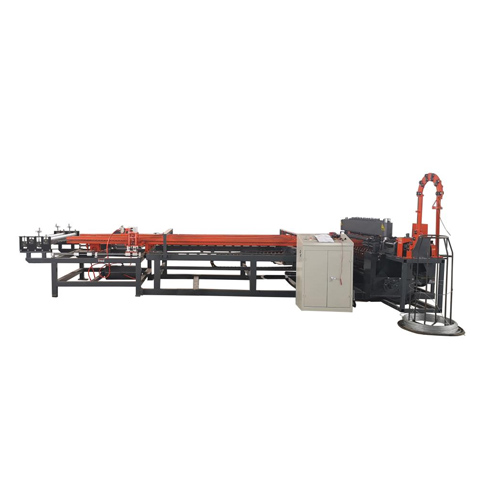

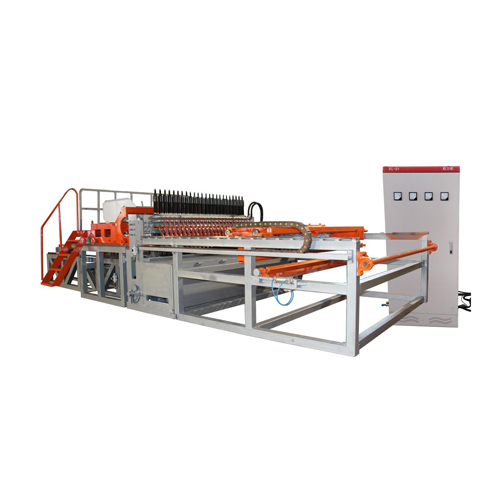

Wire mesh welding machine	Livestock wire mesh welding machine

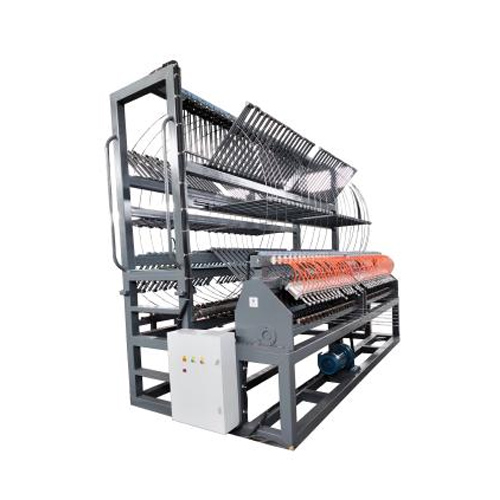

Fully automatic wire feeding frame	Small wire mesh welding machine

Picture	Details

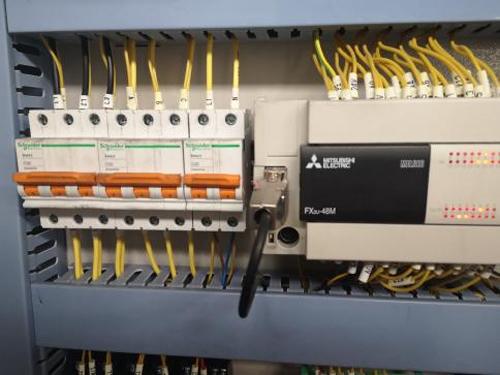

	Our machines use only high-quality components, and our electrical suppliers include Schneider Electric and Mitsubishi, giving us a clear advantage in quality and performance.

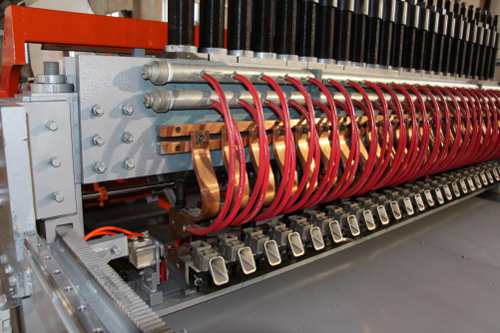

	This machine uses a mechanical eccentric wheel for pressure application, and a servo motor combined with a precision reducer for reciprocating mesh pulling, thus achieving a perfect combination of mechanical motion and servo CNC system. The mesh size is easy to adjust, maintenance is simple, and operating costs are low.

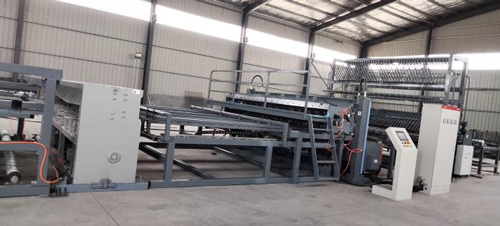

	Our wire mesh making machine can fully automate processes from warp and weft yarn feeding to bending and stacking. One person can operate the entire production line, achieving true full automation.

Parameter of Welded Wire Mesh Machine

Type	STM-24	STM-36	STM-48	STM-612
Wire Diameter(mm)	2-4	3-6	4-8	6-12
Hole Size(mm)	50-200	50-300	100-300	100-300
Net Wide(mm)	1500	2500	2500	2500
Product Length(m)	3-12	3-12	3-12	3-12
Cross Wire Space(mm)	25-300	25-300	100-300	100-300
Line Wire Space(mm)	50-300	50-300	100-300	100-300
Electric Capacity(KVA)	300	850	1250	2400
Working Speed(times/min)	50-60	60-70	50-60	50-60
Weight(T)	2.5	4.5	8.5	10
Outside Size(mm)	800015002000	1000025002000	1200036002500	1200036002500
