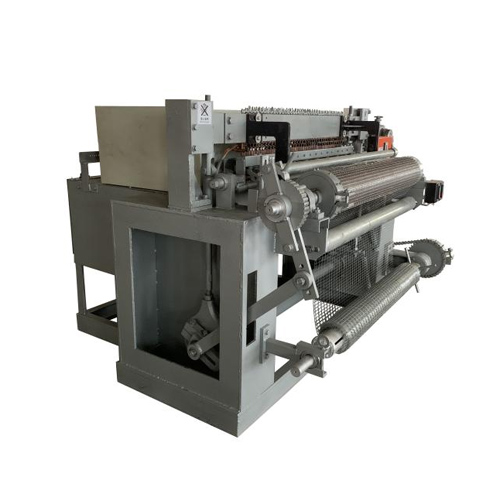

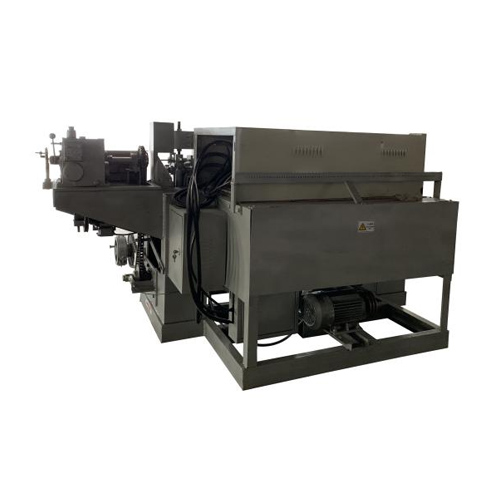

Side view | Rear view |
|
|

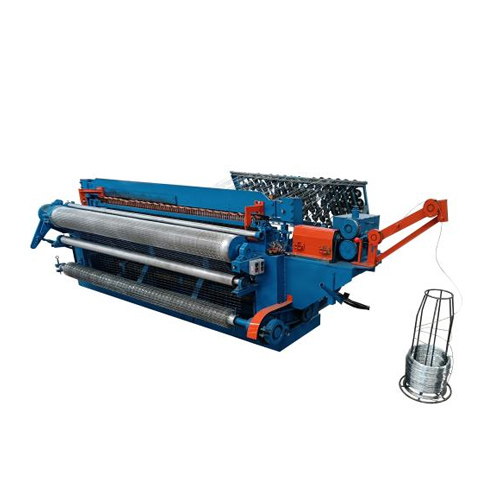

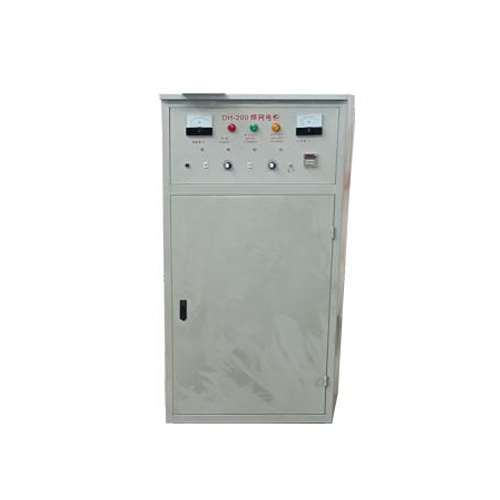

Overall view | Electrical control cabinet |
|
|
| Picture | Details |

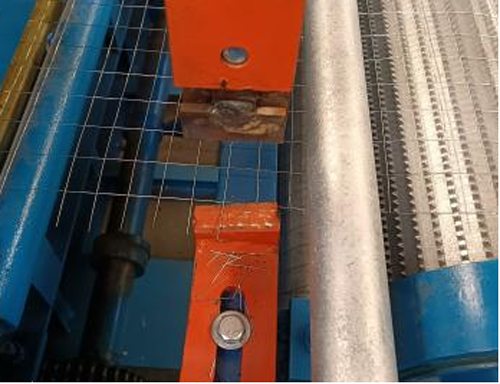

![]() | After welding, the excess metal wires of the welded wire mesh are automatically removed by the edge cutting mechanism, and then the mesh is directly rolled into a roll by the rolling section, forming an integrated product that is convenient and quick. |

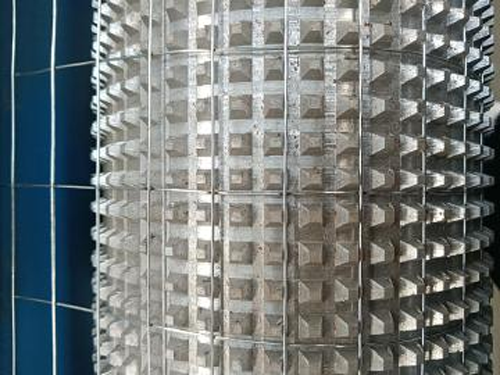

![]() | The welds are tight and strong, with a smooth appearance and precise mesh size. The welding process is fast and there are no missed welds. |

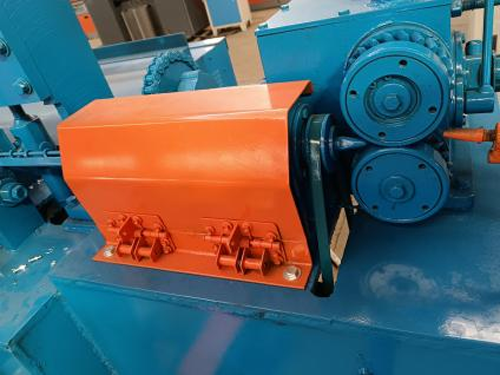

![]() | The fully automatic electric welded wire mesh machine directly winds in the weft wire, which passes through the straight wire section and is cut after reaching a certain length. The entire process is automatically controlled, making it easy to operate and precise, making it an ideal choice. Customers comparing the fully automatic welded wire mesh machine price will appreciate its excellent balance of automation, production efficiency, and long-term operating value. |
Model | STM-W01 | STM-W02 |
Wire Diameter | 0.65-1.2mm, 0.8-2mm | 1-2.5mm, 1.3-2.8mm |
Mesh size | 1/2”,1”, 2” | 1”,2”,3”,4”,5”,6” |
Mesh Width | 3ft,4ft,5ft,6ft,7ft | 3ft,4ft,5ft,6ft,7ft,8ft |
Welding Transformer | 60/70kva*4,5,6,7pcs | 85/100kva*5,6,7,8pcs |
Welding Speed | Max.120-180times/min | Max.60-100 times/min |
Weight | 2-3.2T | 2.8-4T |
