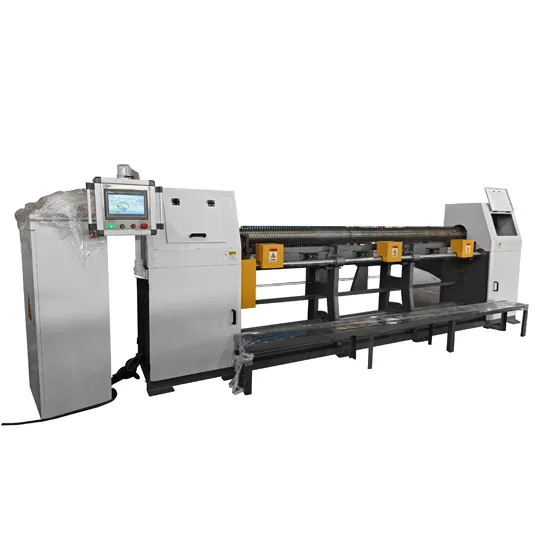

Hexagonal Netting Machine

Hexagonal wire mesh machines are classified into several types according to their manufacturing process, including straight twist, reverse twist, and both straight and reverse twist. They can also be divided into light-duty and heavy-duty types based on wire diameter and manufacturing specifications. The hexagonal wire mesh produced can be used for poultry farming or as garden protective fencing, and has a variety of applications.


Details of Hexagonal Netting Machine

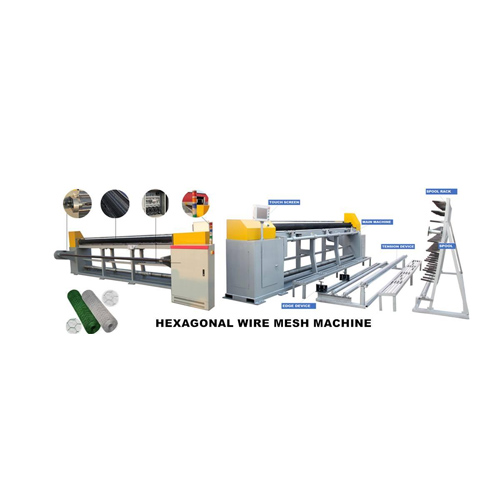

Hexagonal Wire Mesh Machine

Hexagonal Wire Mesh Machine

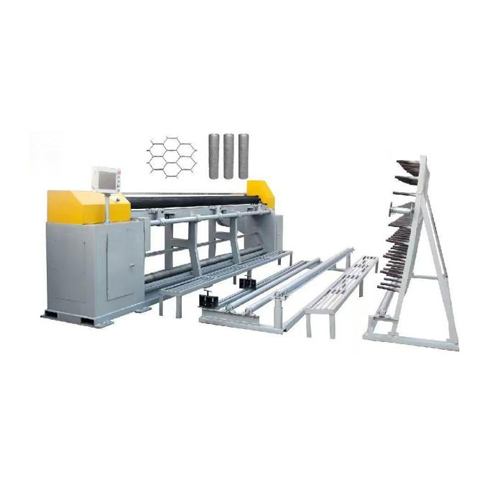

Wire feeding and tension system

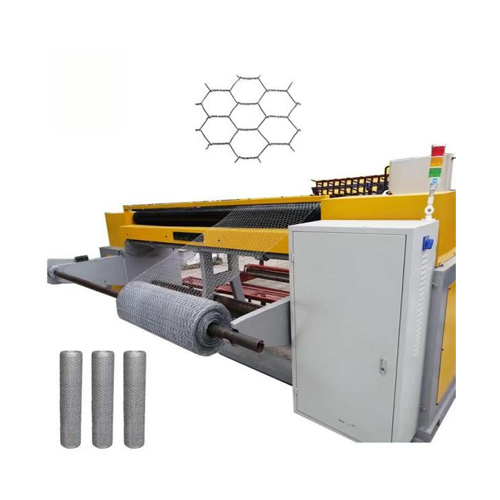

Mesh weaving system

Wire feeding and tension system

Mesh weaving system



PictureDetails

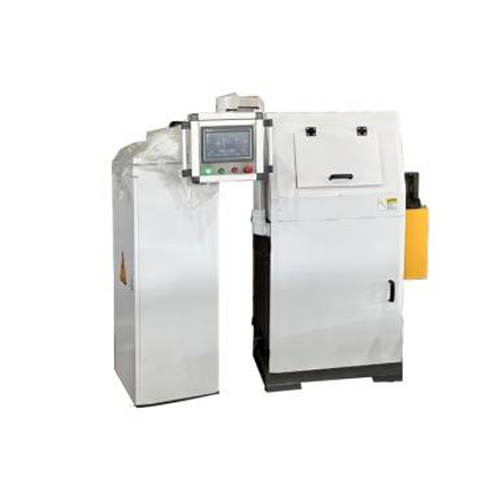

Details of Hexagonal Netting MachineThe entire production line is controlled by a PLC and features functions such as automatic wire breakage, automatic wire winding, and material shortage/jamming alarms, reducing manual intervention while ensuring production precision and improving production efficiency and quality.

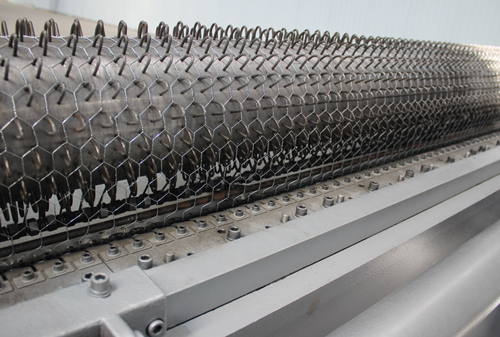

Details of Hexagonal Netting MachineThe machine is constructed entirely of thick steel plates, ensuring smooth operation, minimal vibration, and low noise. It guarantees uniform and neat mesh sizes and maintains stable performance even after prolonged use.

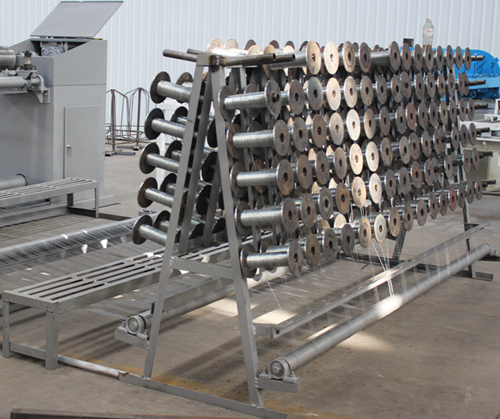

Details of Hexagonal Netting MachineThe double-sided wire feeding spool design ensures production continuity, maximizes machine uptime and total output, allows for the simultaneous storage of large quantities of wire, reduces the frequency of operator inventory replenishment, and makes it easier to change to different types or sizes of wire, thus helping to adapt to different production needs and specification customizations.



Parameter of Hexagonal Netting Machine

Name

Hexagonal wire mesh machine

Power

17kW

Max Net Width

5m

spools

Equip according to the width and sizes of the mesh

Speed

80m/h

Operation control cabinet

PLC and touch screen(Taiwan brand)

Weight

4.6T

Working space requirement

5.5x5m

Operation workers

1-2 workers
