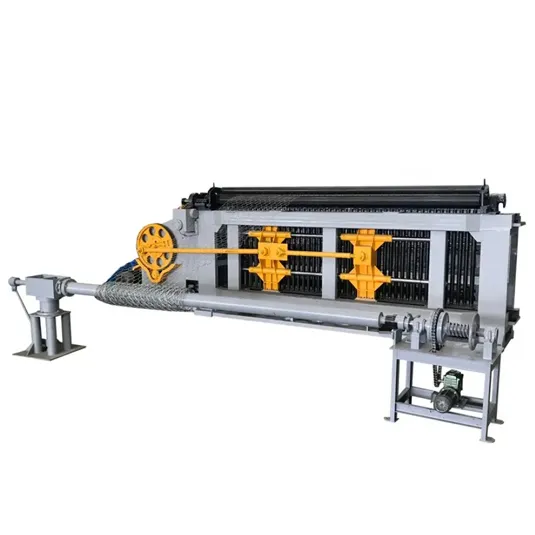

Gabion Mesh Machine

Name: Gabion Mesh Machine
Brand: HEBEI SHUNMAO TECHNOLOGY CO., LTD

Gabion mesh machines use multiple strands of steel wire to wrap and twist together, forming a sturdy hexagonal mesh. This mesh is filled with stones to create a protective structure that is flexible, permeable, erosion-resistant, and easy to construct. It is widely used in water conservancy and civil engineering fields such as riverbank protection, slope protection, and landscape engineering.

As a trusted gabion mesh machine supplier, we offer complete production solutions and technical support for customers worldwide.

Request A Quote

Details of Gabion Mesh Machine

As a specialized wire mesh weaving machine, the gabion mesh machine integrates continuous wire feeding, twisting, and forming processes to ensure stable mesh structure and high production efficiency. The equipment is designed for heavy-duty operation and long service life in demanding engineering applications.

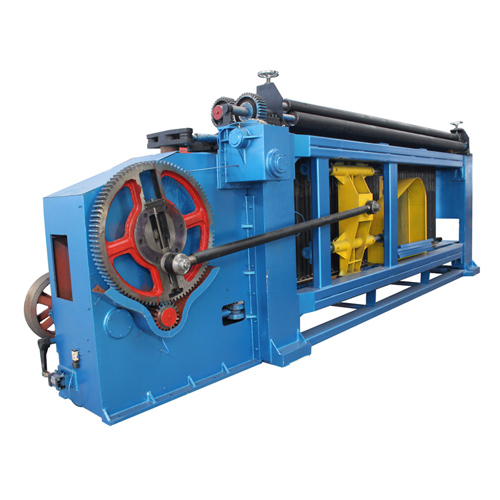

Main machine

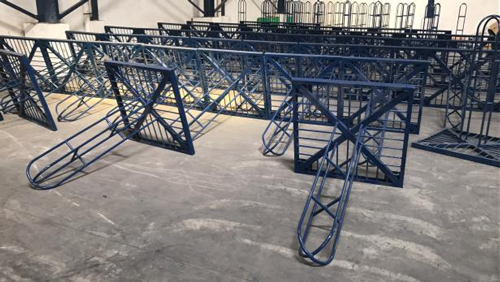

Wire feeding rack

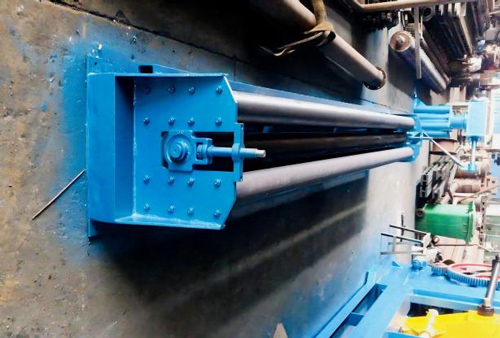

Wire tension machine

Wire feeding rack

Wire tension machine

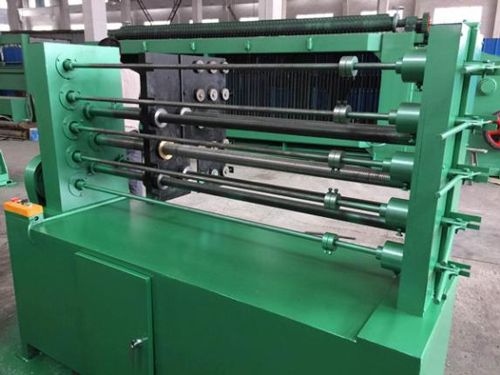

Wire spring machine

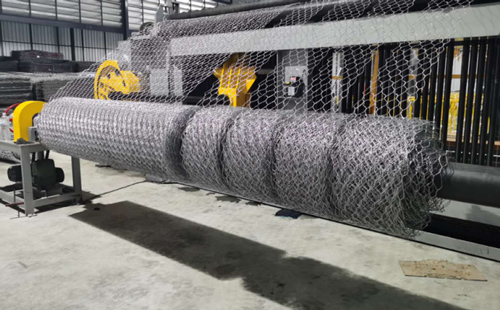

Mesh rolling machine

Wire spring machine

Mesh rolling machine

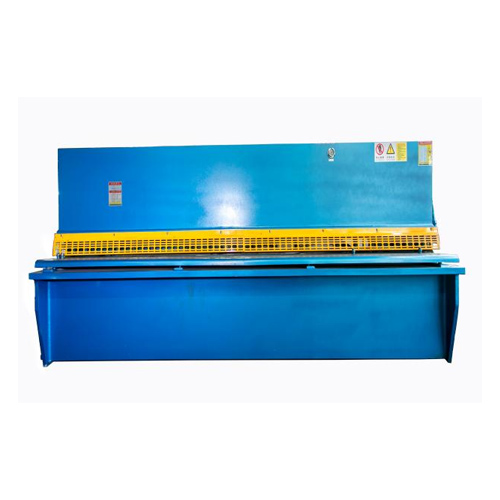

Mesh Cutting Machine

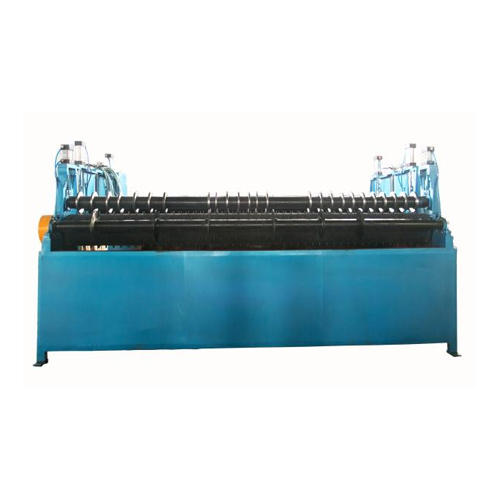

Mesh flattening machine

Mesh Cutting Machine

Mesh flattening machine

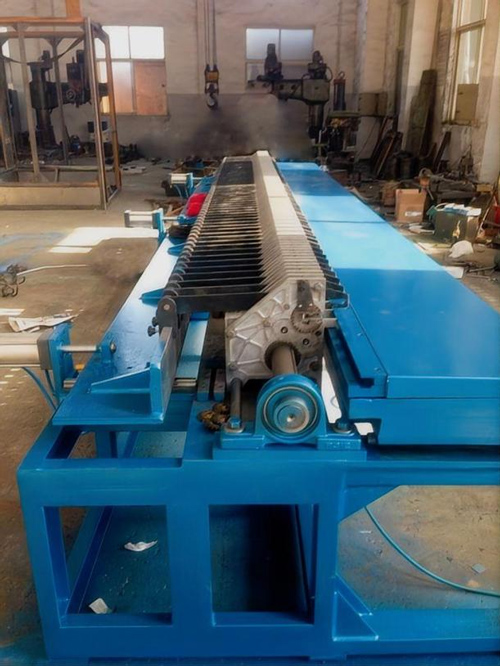

Mesh Selvedge Machine

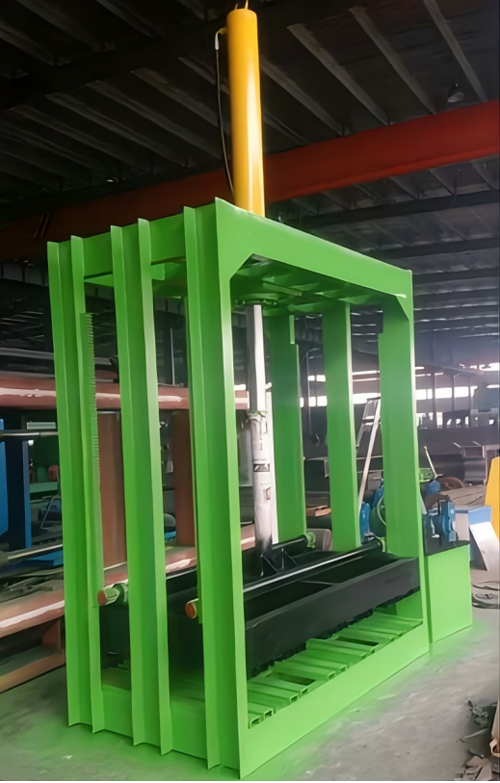

Packing Machine

Mesh Selvedge Machine

Packing Machine


Details

Details of Gabion Mesh Machine

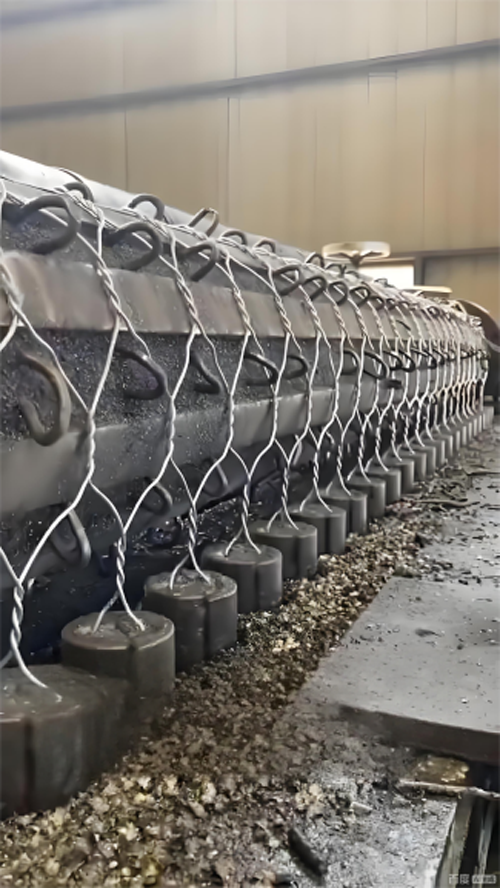

The rotating head is the core component of gabion mesh weaving. Our wheel core is made of cast steel, which can withstand highly wear-resistant environments. In addition, the overall machine design has been well-designed for the lubrication and wear resistance of the gears. Our modern gabion mesh machine factory is equipped with advanced manufacturing and quality inspection systems to ensure long-term equipment stability.

The wire feeding system ensures consistent wire speed and protects the wire, reducing friction and damage, resulting in better corrosion resistance of the finished wire mesh during use. It also features a wire breakage alarm system under PLC control and can adjust the wire feeding speed quickly and promptly. For customers looking for a dependable gabion mesh machine china manufacturer, this design helps ensure efficient operation and reduced maintenance costs.

The winding machine is welded from heavy-duty steel plates, with a wide base supported by four upright columns (H-type structure), providing extremely high mechanical rigidity. This heavy-duty design can withstand the enormous tensile force and weight generated during gabion mesh winding, effectively absorbing vibration and ensuring the stability of the equipment during high-speed or high-load operation. As a leading supplier of gabion mesh machine in china, we can also provide customized machine configurations according to different mesh sizes and production capacities.

For detailed specifications and the latest gabion mesh machine price, please contact our sales team for a customized quotation.

Parameter of Gabion Mesh Machine

Product specification

(mm)

Largest width of shell fabric

(mm)

Largest wire diameter

(mm)

Motor power

(kw)

Weaving speed

(m/hour)

Boundary dimension

(mm)

Weight

(t)

60*80

3500

165

6200*1400*2400

14.5

4500

7200*1400*2400

5500

8200*1400*2400

15.5

80*100

3500

200

6200*1400*2400

14.5

4500

7200*1400*2400

5500

8200*1400*2400

15.5

100*120

3500

220

6200*1400*2400

14.5

4500

7200*1400*2400

5500

8200*1400*2400

15.5

120*150

3500

230

6200*1400*2400

14.5

4500

7200*1400*2400

5500

8200*1400*2400

15.5

Product specification (mm)	Largest width of shell fabric (mm)	Largest wire diameter (mm)	Motor power (kw)	Weaving speed (m/hour)	Boundary dimension (mm)	Weight (t)
60*80	3500	4	15	165	620014002400	14.5
	4500	4	18		720014002400	15
	5500	4	30		820014002400	15.5
80*100	3500	4	15	200	620014002400	14.5
	4500	4	18		720014002400	15
	5500	4	30		820014002400	15.5
100*120	3500	4	15	220	620014002400	14.5
	4500	4	18		720014002400	15
	5500	4	30		820014002400	15.5
120*150	3500	4	15	230	620014002400	14.5
	4500	4	18		720014002400	15
	5500	4	30		820014002400	15.5
