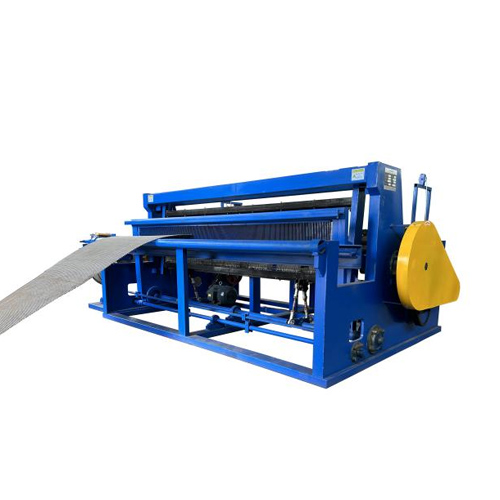

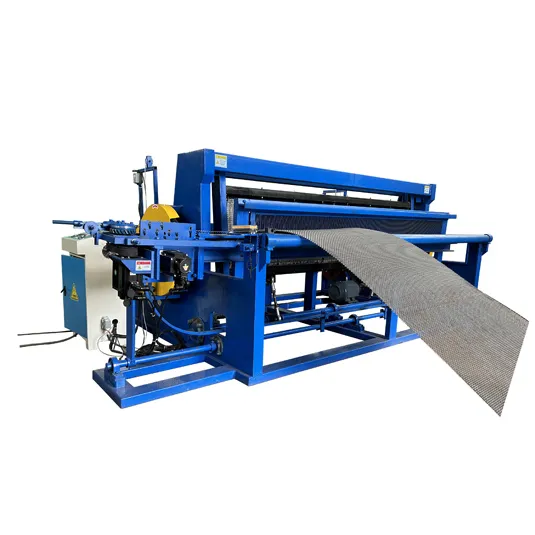

Crimped Wire Mesh Machine

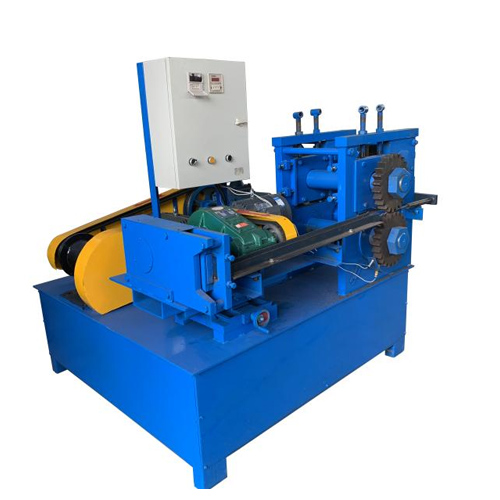

Wire crimping and cutting machine: the wire is rolled into a wave shape and cut to provide the warp

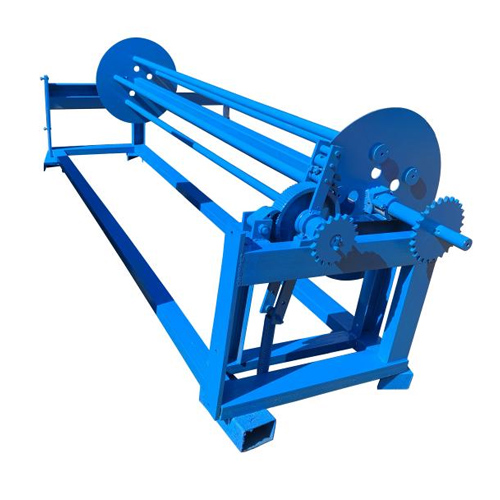

Automatic mesh winding machine: used for winding the crimping mesh

Work Way

full automatic

full automatic

semi-automatic

hydraulic

Wire Diameter(mm)

1.5-5

0.5-2

2-6

5-12

Mesh Width(m)

2-5

1-5

2.5(customized)

2-3

Mesh Size(mm)

10-100

0.6-20

5-50

10-200

Power

3.8+3.0+3.0+2.2kW

3.0

3.0

5.5+2.2

Speed (Times/Min)

20-30

50-80

30

20

Overall Size(mesh width 2m)

3700*2200*1800

2500*1800*1300

3000*2200*1800

3500*2100*1300

Weight(T)

3.5

3

2

0.5
